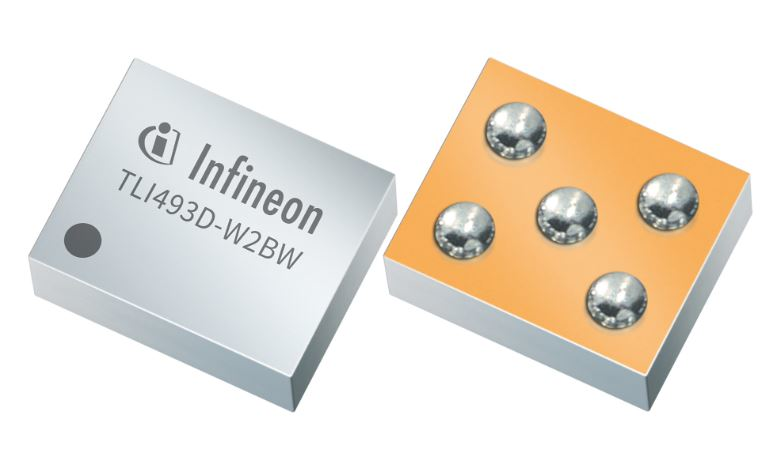

Infineon Technologies will expand its XENSIV 3D magnetic sensor family TLx493D with the TLI493D-W2BW, which uses the latest 3D Hall generation, and is housed in a WLB-5 package measuring 1.13 mm x 0.93 mm x 0.59 mm wafer-level package. With an 87 percent smaller footprint and 46 percent lower height than legacy products, the sensor opens up new design options.
With a current consumption of 7 nA in power-down mode, the magnetic sensor is also suitable for use in applications that previously used resistor-based or optical solutions. Magnetic sensors offer numerous advantages here, such as their high accuracy or robustness against dust and moisture. In addition, magnetic sensors are easier to assemble and offer more design options.
In particular, the low height of the TLI493D-W2BW is helpful in extremely space-critical applications such as BLDC commutation in micromotors or control elements such as joysticks or game consoles. It enables designs with double-sided PCBs or positioning of the sensor between two PCBs. This allows optimal use of the available space; for example, additional components can be placed above the sensor.
The new sensor has an integrated wake-up function. It is available in four variants with preconfigured standard addresses. A higher resolution (typ. 32.5 to 130 µT/LSB12) compared to the previous generation extends the range of applications. XY angle measurement is also supported. The update rate is up to 5.7 kHz (8.4 kHz for XY), while the resolution in low-power modes can be adjusted in eight steps between 0.05 and 770 Hz. Power consumption in power-down mode is specified at 7 nA. The supply current is 3.4 mA. The sensor has an I2C interface and a dedicated interrupt pin.
