Module Supports SEMA Functions, Multiple Processor Cores

Oct. 7, 2014

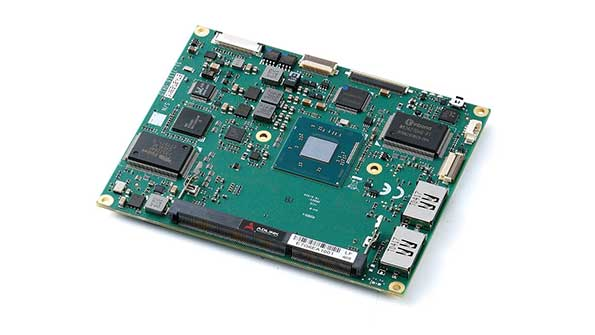

ADLINK’s ETX-BT module with an Intel Atom Processor E3800 series SoC has DisplayPort, VGA, and LVDS graphics outputs.

ADLINK’s ETX-BT module with an Intel Atom Processor E3800 series SoC has DisplayPort, VGA, and LVDS graphics outputs. It supports smart embedded management agent (SEMA) functions as well as single, dual, or quad processor cores. The module features a single SODIMM for up to 4 Gbytes DDR3L and a dual-channel 24-bit LVDS and analog VGA. It also utilizes 2 SATA and 2 PATA (M/S), 10/100 Mb/s LAN, and four USB 2.0 ports. A custom designed carrier board provides the interface to connect the module to peripherals including hard disks and displays. The SEMA cloud enables the platform for Internet of Things (IoT) applications; connecting legacy industrial devices, extracting raw data, and determining which data to save and send for further analysis. The module can operate in extreme, rugged conditions from -40°C to +85°C.

ADLINK
