BLDC Motor with High Power Density

Dec. 18, 2015

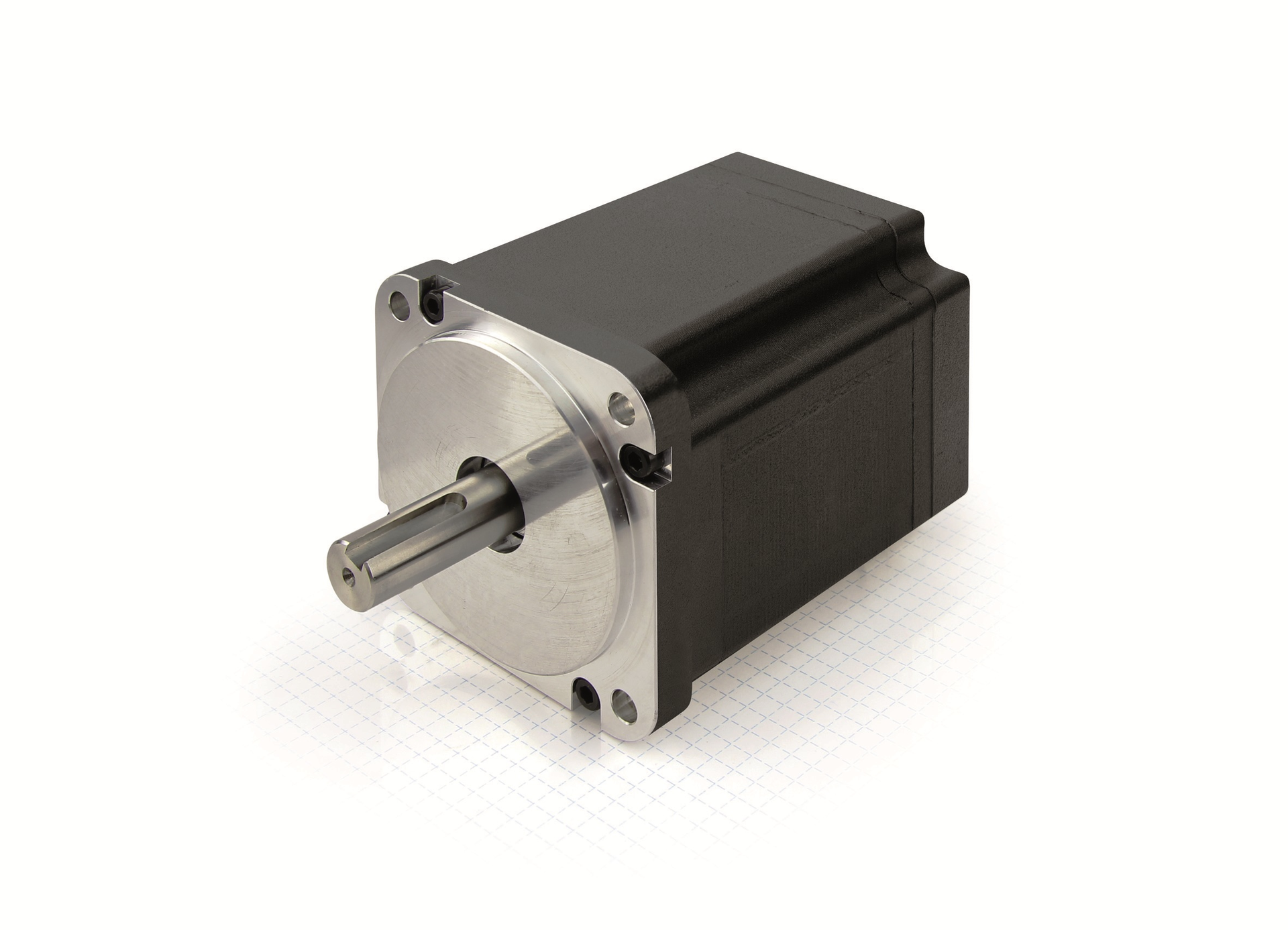

With the DB80, Nanotec presents an EC motor which—relative to its design size—exhibits exceptionally high power density.

With the DB80, Nanotec presents an EC motor which—relative to its design size—exhibits exceptionally high power density. Featuring a rated speed of 3000 rpm and a rated voltage of 48 V, this 8-pin motor is particularly suitable for applications which require a high degree of efficiency; for example in service robotics or automated guided vehicle systems.

Four lengths cover a performance range from 280 to 940 W. Additional high-performance planetary gear systems can be mounted for high torques. Customer-specific versions with other windings or wave forms are also offered. The DB80 has a flange size of 80 x 80 mm and is available with Hall sensors or encoder. By standard, it is supplied with a parallel keyway that enables quick and easy connection. Soon the DB80 will also be available with integrated electronics under the model name PD6-CB80.
