High Efficiency, High Power Density Mobile Solar Panel

Aug. 21, 2015

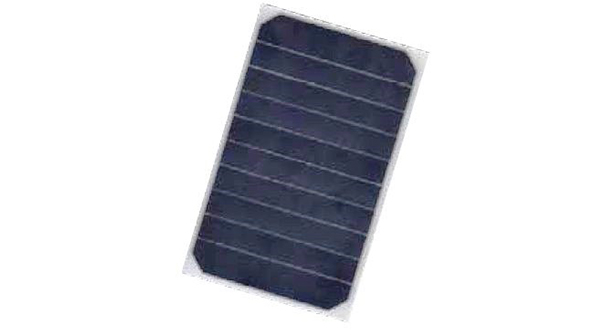

IXYS Corporation recently released a highly-efficient IXOLAR™ solar panel: the SLPN005H10L.

IXYS Corp. recently released a highly-efficient IXOLAR solar panel: the SLPN005H10L. This product is a lightweight, 5-watt, mobile photovoltaic panel with an integrated sun-angle adjuster for maximum solar exposure. The rated efficiency is as high as 22 percent. These panels are suitable for powering portable electrical equipment, PCs, tablets, smart phones and charging batteries via an integrated USB port.

Constructed with monocrystalline cells that have a wide spectral sensitivity (300nm to 1100nm), the SLPN005H10L can be used either indoors or outdoors. Weighing only 60 grams and measuring 223mm in length, 143mm in width, and 2mm in height, it is also highly portable. These solar panels can be assembled in series and/or parallel to achieve a desired output power.

Rated at 5.39W (the maximum peak power), it is suitable for charging mobile consumer electronic devices as well as industrial ones; the voltage and current at the maximum power output are 5.5V and 0.98A, respectively. Typical applications include, among others, battery chargers for smart phones, tablets, and notebooks, backup power for UPS and wireless sensors, street/park lighting, emergency backup power, and independent green power stations.
