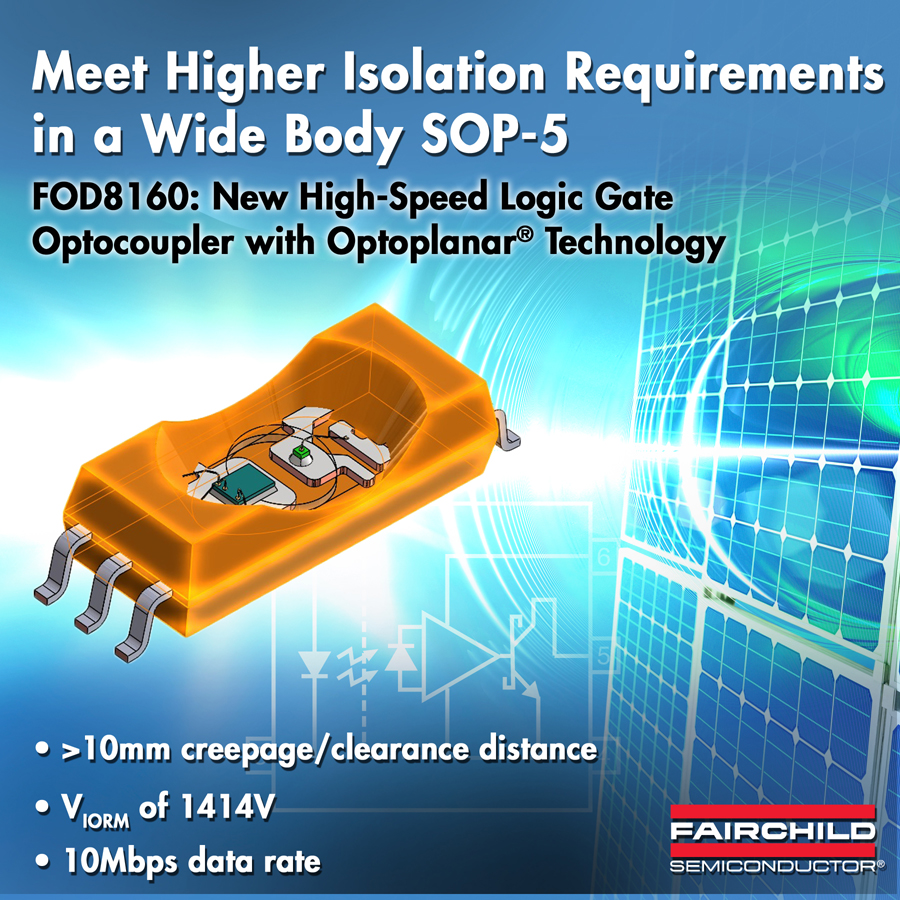

Fairchild Semiconductor introduced the FOD8160, a high noise immunity logic gate optocoupler with Optoplanar technology in a wide body 5-pin small outline package (SOP).
Fairchild Semiconductor introduced the FOD8160, a high-noise immunity logic gate optocoupler with Optoplanar technology in a wide body 5-pin small outline package (SOP). This satisfies the needs of designers working with industrial applications that transmit high speed data reliably in environments where noise - in the form of voltage transients and ground loop currents - is common. They also need to meet stringent new safety standards, such as IEC-62109, the international standard for solar inverters. At the same time, designers need solutions that are flexible, and that take up less board space while reducing bill of material costs.
The FOD8160 allows designers the flexibility of incorporating the isolation on the high voltage side of the circuit, or replacing two smaller creepage/clearance distance digital isolators or optocouplers. In addition, the device has a VIORM (max repetitive peak isolation voltage) of 1414V and a creepage/clearance distance of 10mm, which is much greater than the standard high speed optocouplers. This is a must for designs that require a VIORM value of equal to or greater than 1000V.
Features:
Greater than or equal to10mm creepage and clearance distance; 0.5mm distance through insulation
Safety and regulatory approvals - UL1577, 5,000VRMS for 1 min. - DIN-EN/IEC60747-5-5, 1,414Vmax peak isolation voltage, 8,000Vpeak transient isolation voltage rating (approval pending)
10Mbps data rate
20kV/?s minimum CMTI
High-speed AlGaAs LED " Open collector output " 3.3V or 5V supply voltage facilitates logic level translation
Enhanced performance over extended operating temperature range up to +100 °C
Small size footprint and thin profile enhances board space saving
