Wide input and output range convection cooled DIN rail mount DC-DC converters deliver up to 250W per output

March 24, 2020

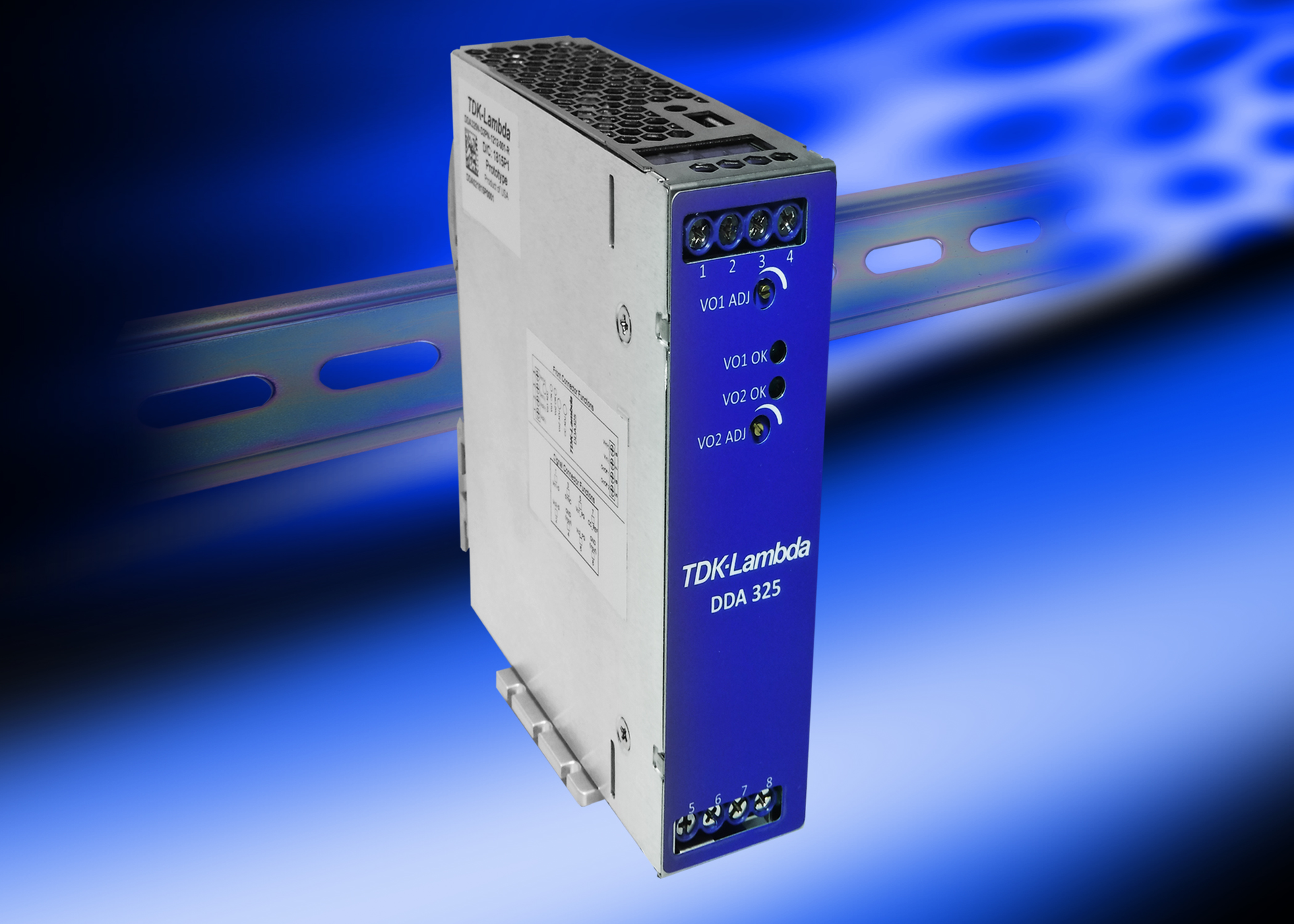

TDK Corporation (TSE 6762) announces the introduction of the TDK-Lambda brand DIN rail mount DDA DC-DC converters. The series uses step-down non-isolated power modules that operate from an input range of 9 up to 53Vdc, with a wide adjustable output voltage range of 3.3 up to 24V. The DDA is ideally suited for generating additional low cost, high current outputs from an existing 24V bus in industrial, semi fabrication and test and measurement equipment.

Three models are available in the DDA series. A single nominal output +12V 20A, a dual output +12V 20A / +5V 20A and a dual output +12V 14A / -12V 8A. Output power is typically 250W for each of the positive outputs and 75W for the negative output. Convection cooled the overall output power is 250W, which can be increased to up to 500W with forced air cooling.

Positive remote sense, remote on/off and individual power good signals are fitted as standard. The DDA series is highly efficient, up to 95%, reducing internal waste heat for reliable operation. The models are 123.4mm high, 115mm deep and have a very narrow 36.5mm width, providing additional space on the DIN rail.

Safety certifications include IEC/EN/UL 62368-1 with CE marking for the Low Voltage, EMC and RoHS Directives. The units also comply with EN 55032-A conducted and radiated emissions and meet the EN 61000-4 conducted, radiated and magnetic field immunity standards.

More information can be obtained at the following TDK-Lambda Americas website, https://www.us.tdk-lambda.com/lp/products/dda-series.htm, or by calling 800-LAMBDA-4. Product availability for the DDA DC-DC converters can be found via the link to TDK-Lambda’s distributor network (see “Check Distributor Stock”) at https://www.us.tdk-lambda.com/lp/.

-----

Major applications

Industrial, process control, semiconductor fabrication and test and measurement.

Main features and benefits

· Provides additional low cost, lower output system voltages

· Wide input range, 9 up to 53V

· Wide output adjustment from 3.3 up to 24V

· Narrow 36.5mm width

· Convection and forced air cooling ratings

Major specifications

Model DDA250N DDA325N DDA500N

Input voltage range Vdc 9 – 53 9 – 40 9 – 53

Output voltage 1 Vdc +3.3 to 15 +3.3 to 24 +3.3 to 15

Output voltage 2 - -3.3 to -24 +3.3 to 15

Maximum output power W 250 250 / 75 250 / 250

Efficiency % 92 - 95 88 - 94 92 - 95

Other features - Positive remote sense, remote on/off, power good signal (for each output)

Safety Certifications - IEC/EN/UL 62368-1

Size (W x H x D) mm 36.5 x 123.4 x 115

Warranty - Three years

For more info on TDK-Lambda DC-DC converters
