Low-Clamping Transient Voltage Suppressors Optimized For Advanced Interfaces

April 17, 2014
Five electrostatic discharge (ESD) suppression devices unveiled by ON Semiconductor achieve maximum capacitance of 0.35 pF and ESD clamping voltages down to 8 V at 16 A. The

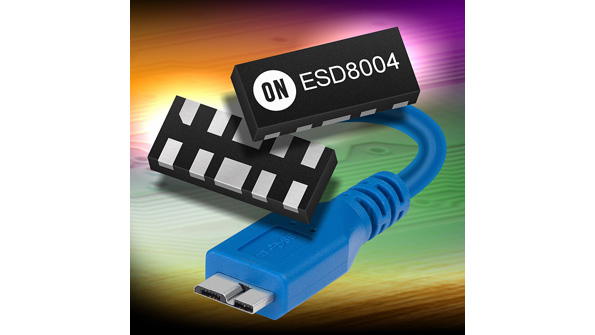

Five electrostatic discharge (ESD) suppression devices unveiled by ON Semiconductor achieve maximum capacitance of 0.35 pF and ESD clamping voltages down to 8 V at 16 A. The low capacitance nearly eliminates any degradation to the data-line signal integrity at rates greater than 10 Gbits/s, which in turn will support the latest high-speed interfaces. The ESD8000 transient voltage suppressor (TVS) series’ low clamping voltage improves protection of system-level ESD testing, a key factor for chipsets evolving to below 20-nm geometries. The four-line ESD8004 and ESD8104 can protect two pairs of voltage-sensitive, high-speed data lines in a 2.5- by 1-mm UDFN-10 package, suiting them for USB 3.0, HDMI 2.0, and eSATA. The ESD8008 integrates eight lines, or four differential pairs, into a single package for HDMI, DisplayPort, and V-by-One HS interfaces. The six-line ESD8006 protects 10-Gbit/s interfaces such as Thunderbolt and USB 3.1. It has 0.25-pF capacitance and utilizes single connect flow-through packaging, eliminating the “no connect” pin. Finally, the ESD8040 provides 14 lines of integrated ESD protection for HDMI 2.0 and DisplayPort I/Os.
