Battery Voltage-Monitor ICs for Portables Drive 3-, 4-, and 5-Bar LED Indicators

July 16, 2025

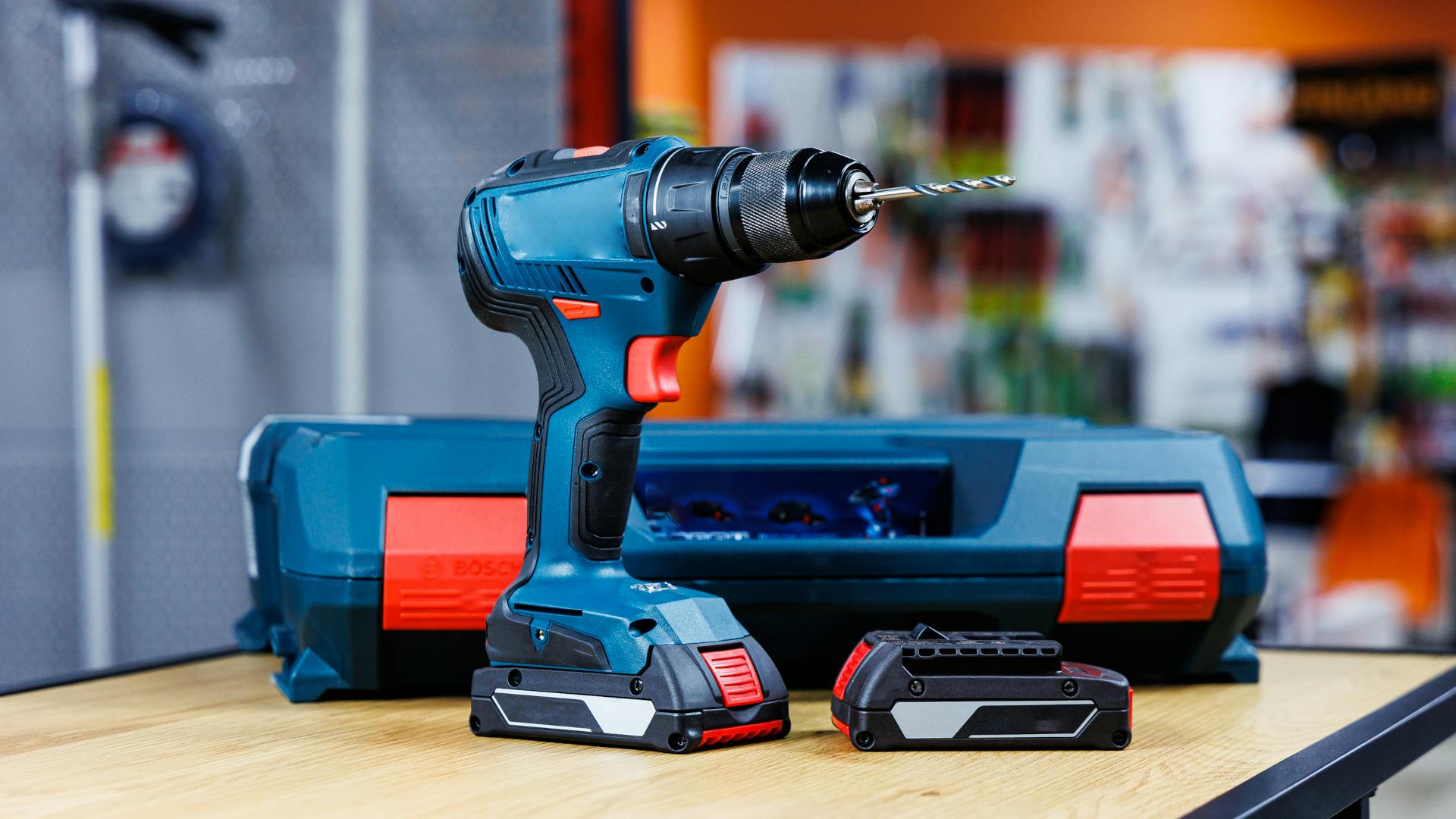

ABLIC’s single-chip, battery-level sensor/display driver saves power and simplifies the design of cordless tools and other portable products.

Lee Goldberg

Related To:

Electronic Design

The S-82x9 family of voltage-monitor + LED-driver ICs developed by ABLIC provides simple solutions for 3- to 5-segment battery status displays in cordless tools and other portable electronics. All devices can monitor multiple voltages while consuming very little power and occupying a very small PCB footprint. They can monitor multiple voltages and don’t require support from an external microcontroller.

Variants of the display drivers are available with “ENABLE” and “SENSE” pins, which allow the designer to select various modes of operation. Depending on the level of resolution required, designers can use the S-82F9 Series to drive up to five LEDs, the S-82D９ Series to drive up to four LEDs, or the 8229A Series to drive up to three LEDs.
