Fast Acting Chip Fuse CCF1F Rated to 15 A

Dec. 29, 2014

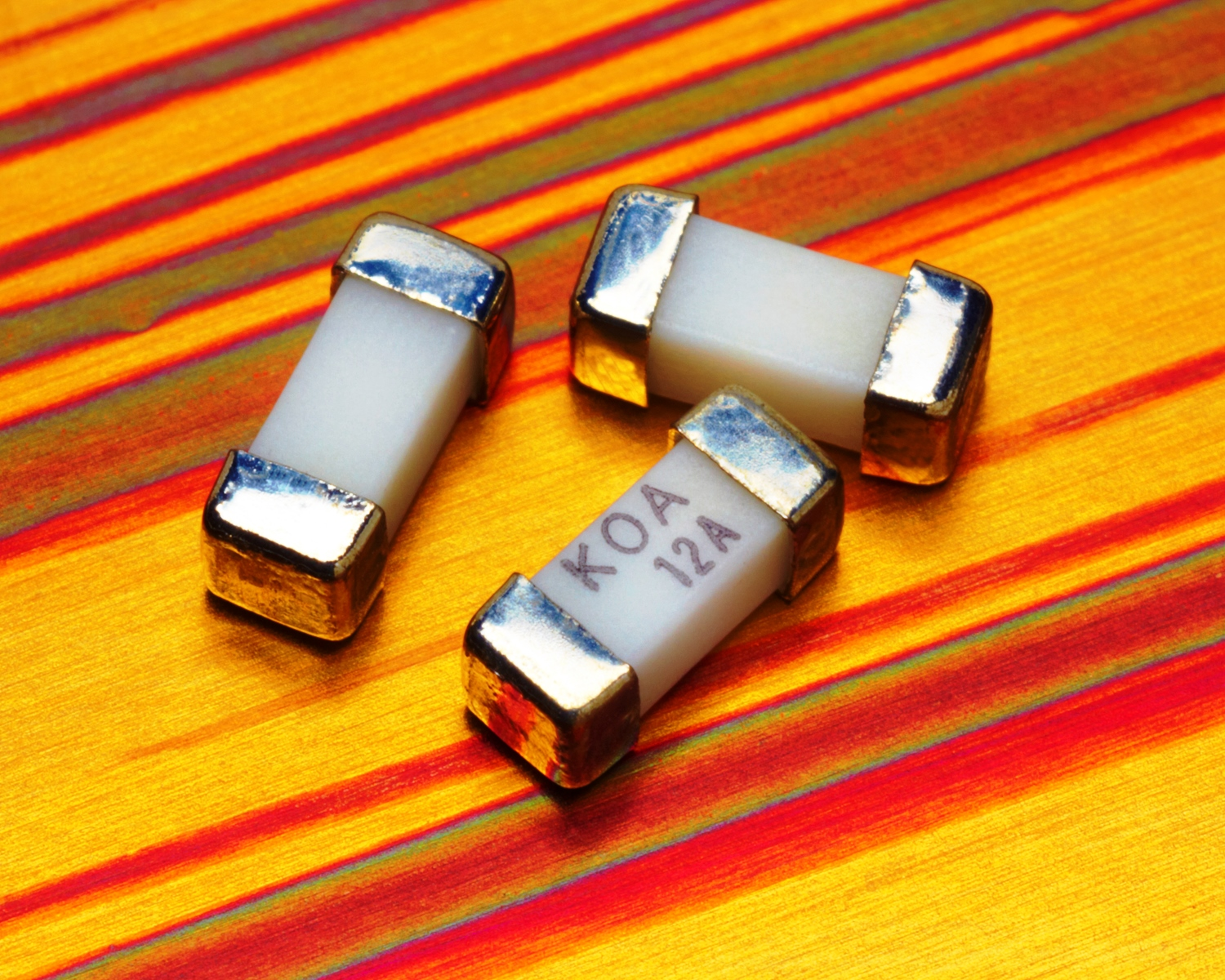

KOA Speer Electronics, Inc. introduces its new fast-acting chip fuse, CCF1F, with a rated current of up to 15 A.

KOA Speer Electronics, Inc. introduces its fast-acting chip fuse, CCF1F, with a rated current of up to 15 A. Due to the original chip fuse technology, this fast-acting chip fuse provides over-current protection with stable fusing characteristics.

The CCF1F, in a 2410 size, has a range of rated current from 0.4 to 15 A, and meets IEC 60127-4 specifications (7A or less). The CCF1F ceramic case provides excellent mechanical strength and offers an operating temperature range of -55oC ~ +125oC.

The EU RoHS-compliant CCF1F is ideal for consumer electronics, industrial and automotive markets, in applications such as base stations, car audio and navigation, LED lighting, switching equipment and DC-to-DC converters.

Lead time for the CCF1F is 10 weeks. Samples are available upon request.
