250 W Convection-Cooled Power Supply Stands Just 1.18 In. High

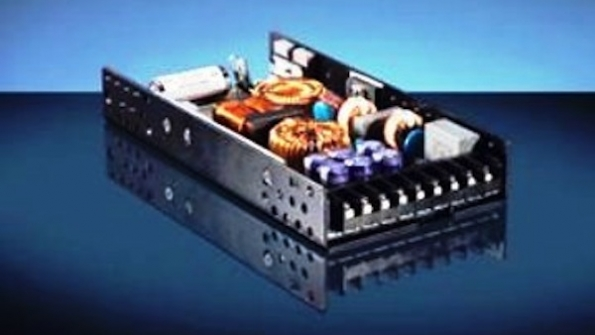

The CUS250LD series low profile, single-output AC-DC power supplies from TDK-Lambda provide 250 W of output power with convection cooling (no fans required). This design eliminates the need for fan maintenance and reduces acoustic noise and vibrations. In addition, they feature a low profile of only 1.18" and a compact footprint of 4.0" x 7.8", making them an ideal choice for applications in light industrial, LED signage, communications, broadcast, gaming, point-of-sale, IT, and test & measurement equipment.
The supplies operate from a universal input of 85-264 Vac, 47-63 Hz, with PFC, enabling them to be used anywhere in the world. Moreover, they can operate from a 120-370 Vdc input. These units have an input- to-output withstand voltage of 3kVac. The CUS250LD series are available with an output voltage of 3.3 V, 4.2 V, 5 V, 12 V, or 24 Vdc, all of which have a +/-10% user-adjustment range.
The convection-cooled operating temperature range is from -25 °C to +70 °C with derating above +40 °C. The power-saving efficiency is up to 90%. Other standard features include overvoltage and overcurrent protections plus a green LED indicator that is lit when the supply is on.
The CUS250LD series feature global ITE and general purpose safety agency certifications per UL/CSA/EN60950-1, EN50178, and are CE Marked. The supplies meet the conducted and radiated EMI requirements of EN55022-B & FCC Class B and include a three-year warranty.
