3000-W 54 V Front End Power Supply Is Highly Efficient

Tectrol introduces the TFE3000-54, a 3,000 watt 1U hot swap power supply with a power density of 33.48W/in3.
Feb. 21, 2014

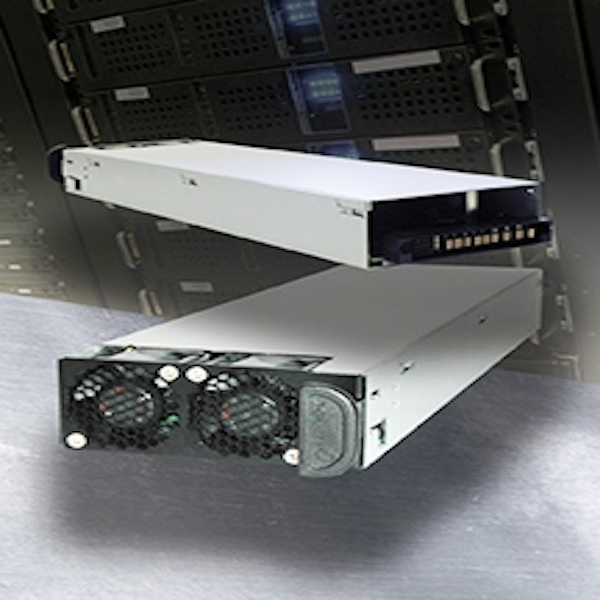

The TFE3000-54 from Tectrol is a 3,000 watt 1U hot swap power supply delivering 80 Plus Platinum efficiencies with leading power density of  33.48 W/in3.

The TFE3000-54 offers a floating DC output of 54V which is adjustable from 42 to 55 Vdc making it ideal for Power-Over-Ethernet, Telecom and Networking applications. Measuring only 1.6 x 4 x 14 in., the supply features: a standby output of either 3.3 V or 5 V rated for 2 A; digital I2C/PMBus status & control; and a single rear blind-mate connector for AC input, DC output and status / control connections. An optional 1U 19 in. Power Shelf is available to mount up to 4 power supplies for N+1 or 2N dual feed redundancy operations. Units are safety approved to cTUVus 60950-1 and bear the CE Mark for world wide applications.

Evaluation quantities are available on-hand with production lead-time of 12 weeks. Pricing starts as low as $0.11/Watts in OEM quantities.
