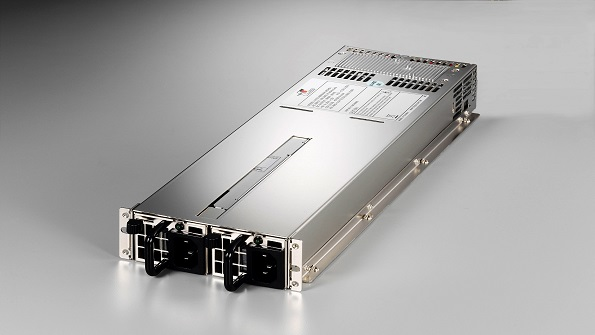

Stadium Power offers the 800 watt M1V2-5801V4H 1+1 micro redundant 1U industrial PC power supply for secure bulk power applications including digital imaging, file servers, storage systems, workstations, blade servers, communication systems, telecom/broadcast systems, and industrial PCs.
Standard features of the Stadium Power M1V2-5801V4H include 90-264VAC universal input voltage, typical efficiency 88% @ 230VAC and operating temperature range 0-50°C, UL, CUL and TUV safety agency approvals and dimensions of just 355 x 106 x 41.8mm.
Features of note to systems integrators include a power good signal, over power protection, over voltage protection, short circuit protection with led, buzzer and TTL signal of any fault condition. The Stadium Power M1V2-5801V4H has a PMBUS. All power supplies from this range have a 3 year warranty as standard.
The M1V2-5801V4H comes from a range of other redundant power supplies from 150W to over 3000W. Formats in the range include 1U, 2U, 3U mini 1U single, 1U, 2U, 3U, Mini, Micro and N+1 redundant. All models in the range provide constant true wattage (not peak) power handling capability.
Single, non-redundant models and DC input versions are also available and M1V2-5801V4H products can be customised; including tailored output power looms and ruggedization. To discuss any application specific requirements contact Stadium Power's customer engineering support team.
