600W High Voltage Programmable Power Supplies

April 28, 2015

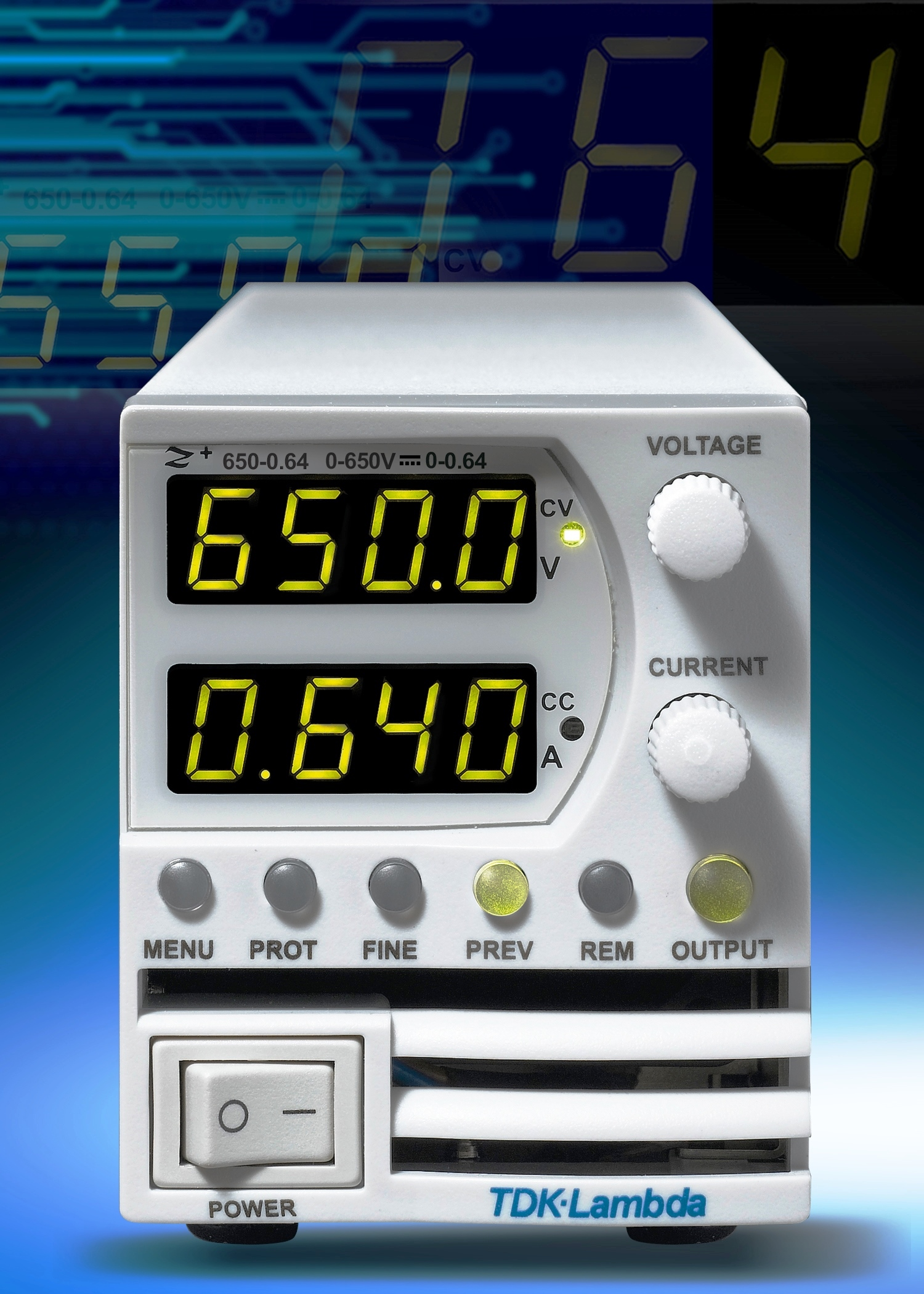

TDK Corporation announces the introduction of 600W high voltage models to TDK-Lambda's Z+ series of programmable DC power supplies.

TDK Corporation announces the introduction of 600W high voltage models to TDK-Lambda's Z+ series of programmable DC power supplies.  This extensive series is now available with output voltages of 0-10, 0-20, 0-36, 0-60, 0-160, 0-320 or 0-650VDC and with output powers of 200, 400, 600 and 800W.  These higher voltages address the requirements for applications such as deposition processes, remotely operated underwater vehicles, ATE systems as well as general laboratory and industrial use.

The TDK-Lambda Z+ 600W high voltage models have the same features and compact dimensions (2U high and 2.76" wide) as the existing models and achieve efficiencies of up to 89%.  The units can operate in either constant current or constant voltage modes and accept a universal 85-265VAC input.  Up to 6 units can be connected in parallel (master-slave configuration), or 2 identical units in series with external diodes.

All the Z+ series can be programmed via the front panel controls or remotely using the USB, RS232/485 or analog control interfaces.  Optional LAN, GPIB (IEEE488) and isolated analog programming interfaces are also available.

CE marked for the EMC, Low Voltage, and RoHS Directives, the Z+ series conforms to EN55022/EN55024 as well as IEC/EN61326-1 for conducted (FCC part-15-B) and radiated (FCC part-15-A) EMI.  Safety certifications include UL/EN/IEC61010-1 and the series is designed to meet UL/EN60950-1.  All models carry a five-year warranty.

Main features and benefits:

  • Built in analog, USB and RS232/485 interfaces
  • Optional LAN, GPIB and isolated analog programming
  • Bench or rack mount
  • Constant current or voltage operation
