3 Watt PCB Mount AC/DC Power Supply in Tiny Package

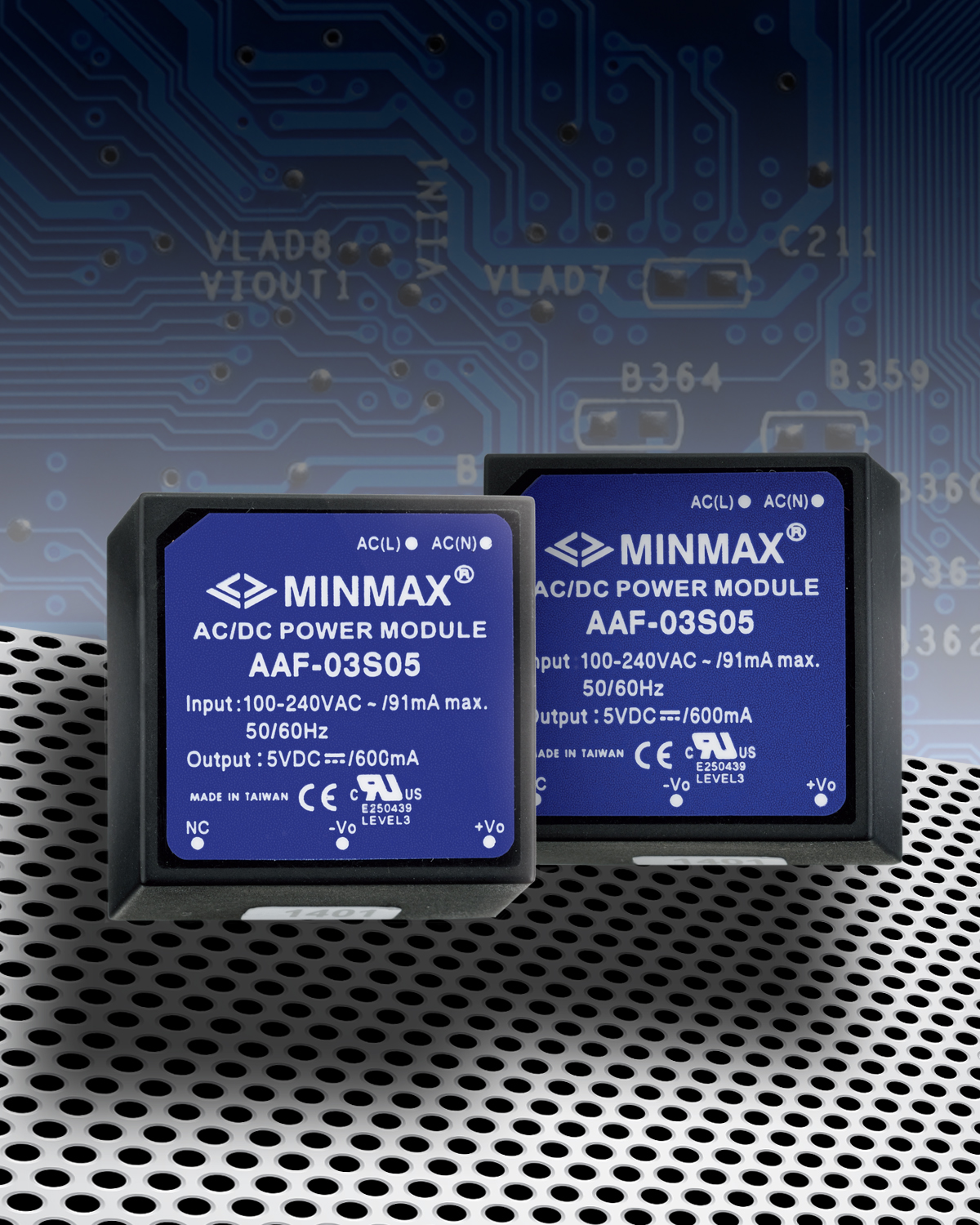

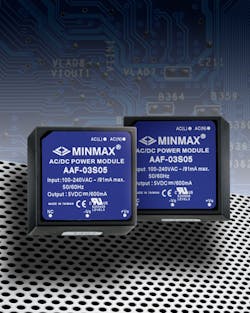

MINMAX has released the new AAF-03 series of 3 watt switching AC/DC power supplies in an encapsulated PCB Mount package featuring measuring only 1 x 1 x 0.64".

Nov. 13, 2015

MINMAX has released the new AAF-03 series of 3 watt switching AC/DC power supplies in an encapsulated PCB Mount package featuring measuring only 1 x 1 x 0.64". The AAF-03 series are a cost effective solution for space critical applications in consumer appliances, instrumentation and communication equipment.

The AAF-03 series consists of 6 models featuring Universal AC Input (85~264VAC / 47~440Hz) and regulated single output voltages ranging from 3.3 ~ 24 VDC. These power modules feature: 3000VAC Isolation with Reinforced Insulation; built-in EMI-filter to meet EN55011/55022 class B and EN 55014; EN61000-4-2,3,4,5,6,8,11 EMC immunity; No Minimum Load requirements; Short Circuit / Overload / OverVoltage Protection; and low stand-by power consumption <150mW complying with European ErP Directive 2009/125/EC.

Units have been qualified via CB Report and Class II safety certifications for both UL/cUL/IEC/EN 60950-1 (ITE Applications) and TUV/IEC/EN60335-1 (household electronics). All MINMAX products are Reach Compliant, RoHS Compliant and Conflict Mineral Free and come standard with a 3 year warranty.
