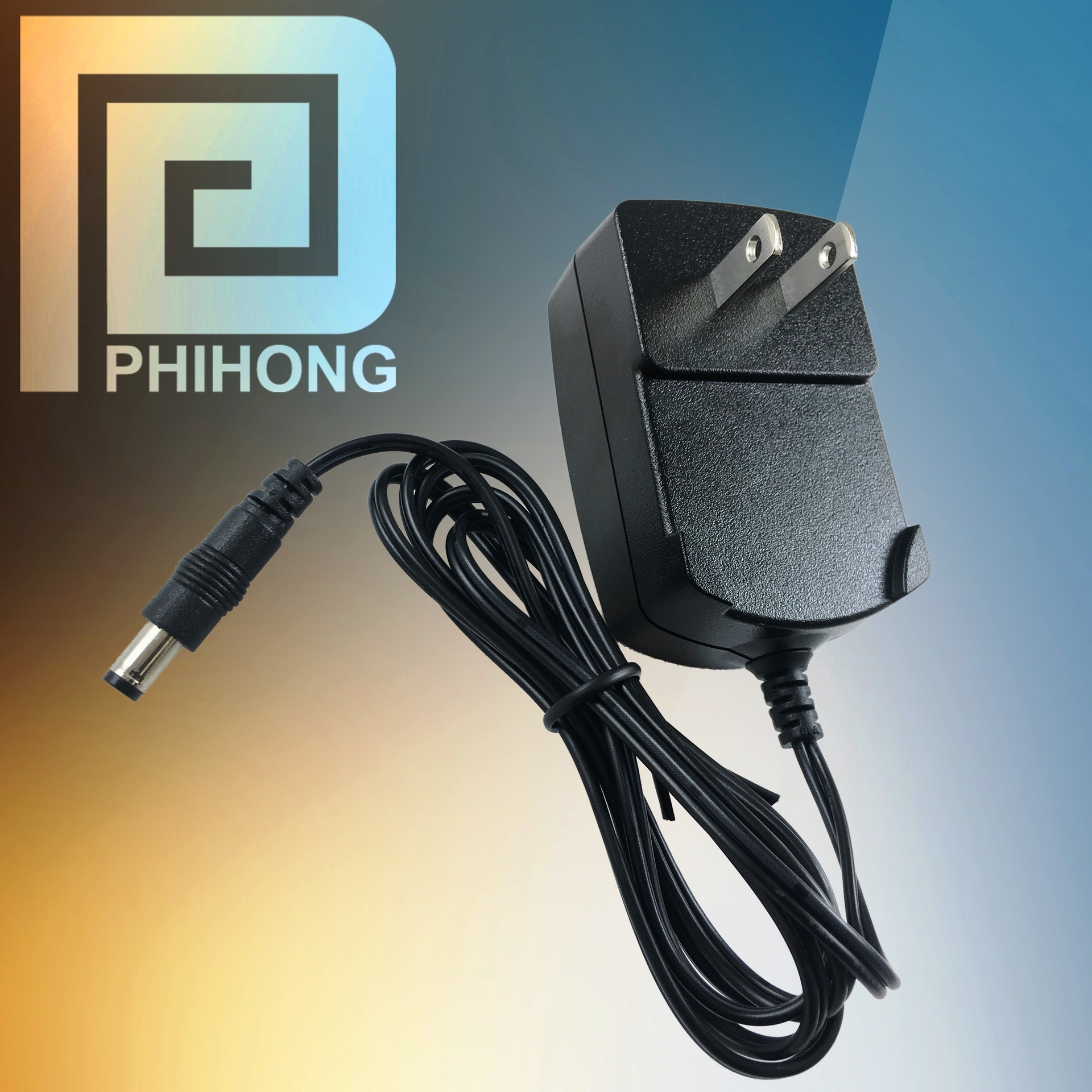

Phihong USA introduced a new series of 10W, fixed blade wall-plug adapters. Designated the PSM10A Series, the new wall-plug adapters deliver high efficiency at a low cost, making them ideally suited for a wide range of consumer electronics applications, including: wireless communications equipment, peripherals, portable equipment, and personal electronics, like PDAs.
Compliant with both US Department of Energy (DOE) Level VI and European Union Code of Conduct (CoC) V5 Tier 2 efficiency standards, Phihong's new 10W wall-plug adapters are a limited power source (LPS) rated for 100-240VAC input and 5VDC output. Featuring Class II double insulation and Class B EMI, the series is also certified to UL/cUL 60950-1 safety specifications, and has built-in over-voltage, over-current, and short-circuit protections.
The PSM10A wall plug adapters measure 71.7mm (2.82") x 45mm (1.77") x 30.79mm (1.21"), weigh 68g (2.4oz), and feature a 2.1mm x 5.5mm center positive barrel DC output connector. Operating temperatures for the series span 0° to +40°C, and allowable humidity spans 10-90%. Pricing for single unit quantities start at $3.75 in OEM quantities.
