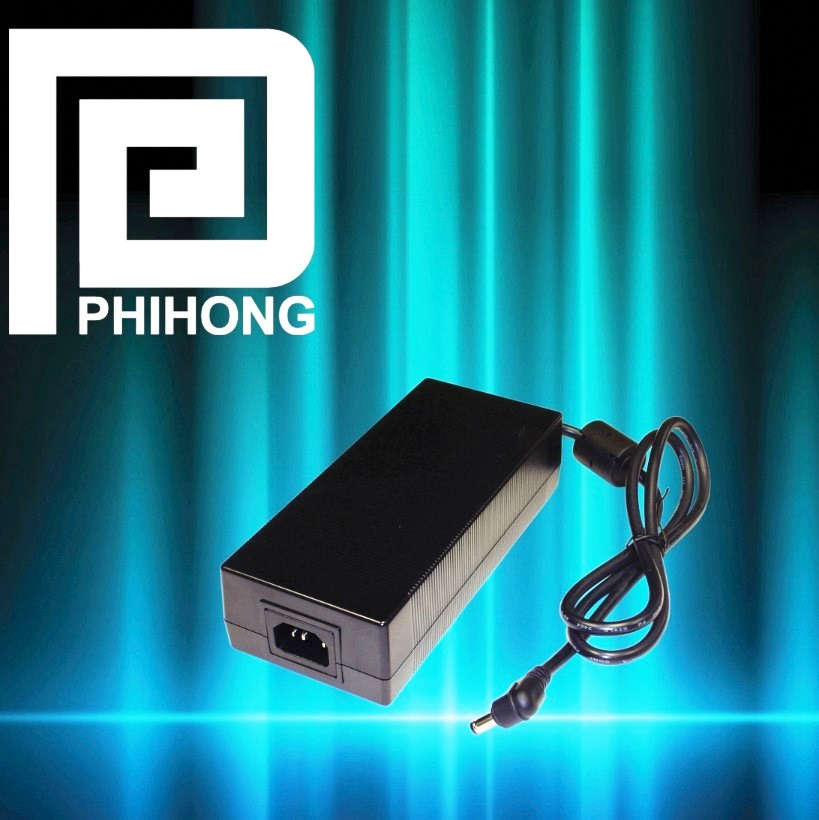

Phihong's new PSA120U Series 120W power adapters feature a universal three-wire IEC320-C14 input connector, are rated for AC inputs up to 230VAC, and are available in five DC output voltages: 12V, 24V, 48V, 54V, and 56V.
Compliant with both US Department of Energy (DOE) Level VI and European Union Code of Conduct (CoC) V5 Tier 2 energy efficiency standards, PSA120U Series desktop power adapters deliver 120W output power, and exhibit input power savings of <0.15W at 230VAC. The adapters are also certified to UL 60950-1, CSA 22.2 60950-1, and TUV safety specifications, and have built-in over-voltage, over-load, over-temperature, and short-circuit protections. Operating temperatures for the series span 0C to +40C, and allowable humidity spans 10- 90%.
PSA120U Series power adapters are housed in a non-vented, spill-proof case that measures 152mm x 73mm x 37mm (5.98" x 2.88" x 1.45") and weighs 800g (1.76lbs). The 12V model features a four-pin mini DIN DC output connector, and all other models feature a 2.5 x 5.5mm standard center positive barrel DC output connector. Pricing for single-unit quantities starts at $96.88.
