High Efficiency 1000W AC/DC VPX Power Supply

Oct. 5, 2016
North Atlantic Industries announced the availability of its latest 6U rugged VPX power product.

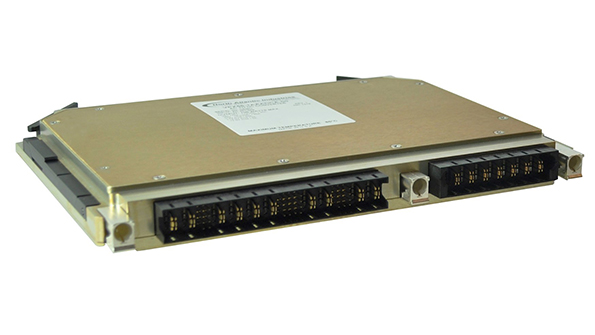

North Atlantic Industries (NAI) announces the availability of its latest 6U rugged VPX power product, the VPX56H-6. Ideally suited for rugged military and aerospace applications, the VPX56H-6 provides up to 1,000 watts of power (CC4 temperature range, full load) with five outputs and is compliant with MIL-STD-704F. Other features include current share, remote error sensing and a built-in EMI filter compliant with MIL-STD-461F. all within a single slot 1.0 pitch, 6U package. The VPX56H-6 is designed to meet standard 6U VPX mechanical requirements and has VITA 62 compatible keying, outputs & signaling, user programmability, I2C communication, geographical addressing, programmable over-temperature monitor and a five state, status LED.

gThe VPX56H-6 fulfills a unique requirement expressed by our customers by providing an input that accepts either 3-phase AC or high voltage (+270Vdc) DC Input within a VITA 62 compatible product while meeting stringent power requirements in a compact rugged COTS package,h said Lino Massafra VP Sales and Marketing. Many of today's military systems rely heavily on high efficiency power supplies that can support OpenVPX requirements and withstand MIL-STD-704 low and high voltage transients. The VPX56H-6 is the latest in a complete line of NAI VPX power converters that support some of todayfs most demanding system power requirements.

Basic pricing configuration starts at $4,501 each in quantities of 100. Programmability, I2C communication, remote sense and current share are included.
