Assess the Challenges of Next-Generation EV Charging

May 7, 2014
With electric vehicles continuing to grow in popularity, home-based charging will have to overcome several issues.

Vehicle charging standards: A quick primer

As electric vehicles (EVs) proliferate, plugging in at home will remain the preferred means of vehicle charging. Apps on the vehicle owner’s mobile device must ensure that a) the vehicle is correctly plugged in; b) charging occurs only during off-peak periods to minimize costs; and c) the driver is directed to commercial charging stations when necessary to address range anxiety.

Related Articles
Electric Vehicles Cruise Into The 2014 New York Auto Show
Media Reports Fuel Unfounded Fears About EV Batteries
Consumer Perception Inhibits Electric Vehicle Adoption

For home-based charging, the Society of Automotive Engineers (SAE) j1772 AC Level 2 charging standard has been adopted by both plug-in hybrid electric vehicles (PHEV), such as the Chevrolet Volt, and fully-electric plug-in vehicles (PEV), such as the Nissan Leaf. These charging systems support 3-7 kW of charge power by providing the AC to DC conversion in the vehicle, but still require 3.5 to 7 hours of charge time. (For more on international EV charging standards, see “Understanding U.S. And European Standards For Electric-Vehicle Charging.”)

For commercial charging stations, the vast majority deployed today are hardened/vandal-proof Level-2 ac systems, rated for a maximum of 6.6 kW), that are otherwise electrically identical to those found in the car owner’s garage. Commercial charging stations are key to addressing range anxiety. Establishing them on a broader scale is necessary and will also require a faster charging solution in order to further accelerate EV adoption.

Download this article in .PDF format
This file type includes high resolution graphics and schematics when applicable.

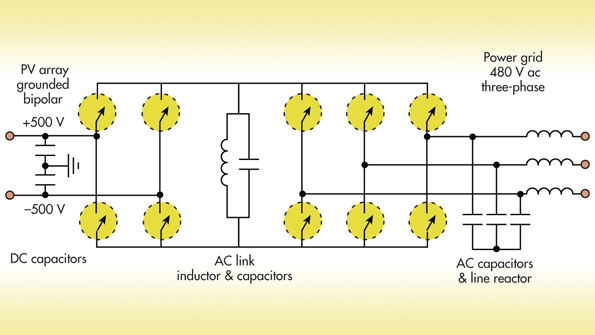

1. Conceptually, the Power Packet Switching Architecture provides for 100% indirect power transfer. All the energy runs through, and is temporarily stored in, a high-frequency ac link consisting of an inductor and capacitor. Bi-directional ac switches minimize conduction losses, delivering high-efficiency power transfer in all modes of operation.
