6 Watt DC-DC Converters in DIP-24 Package

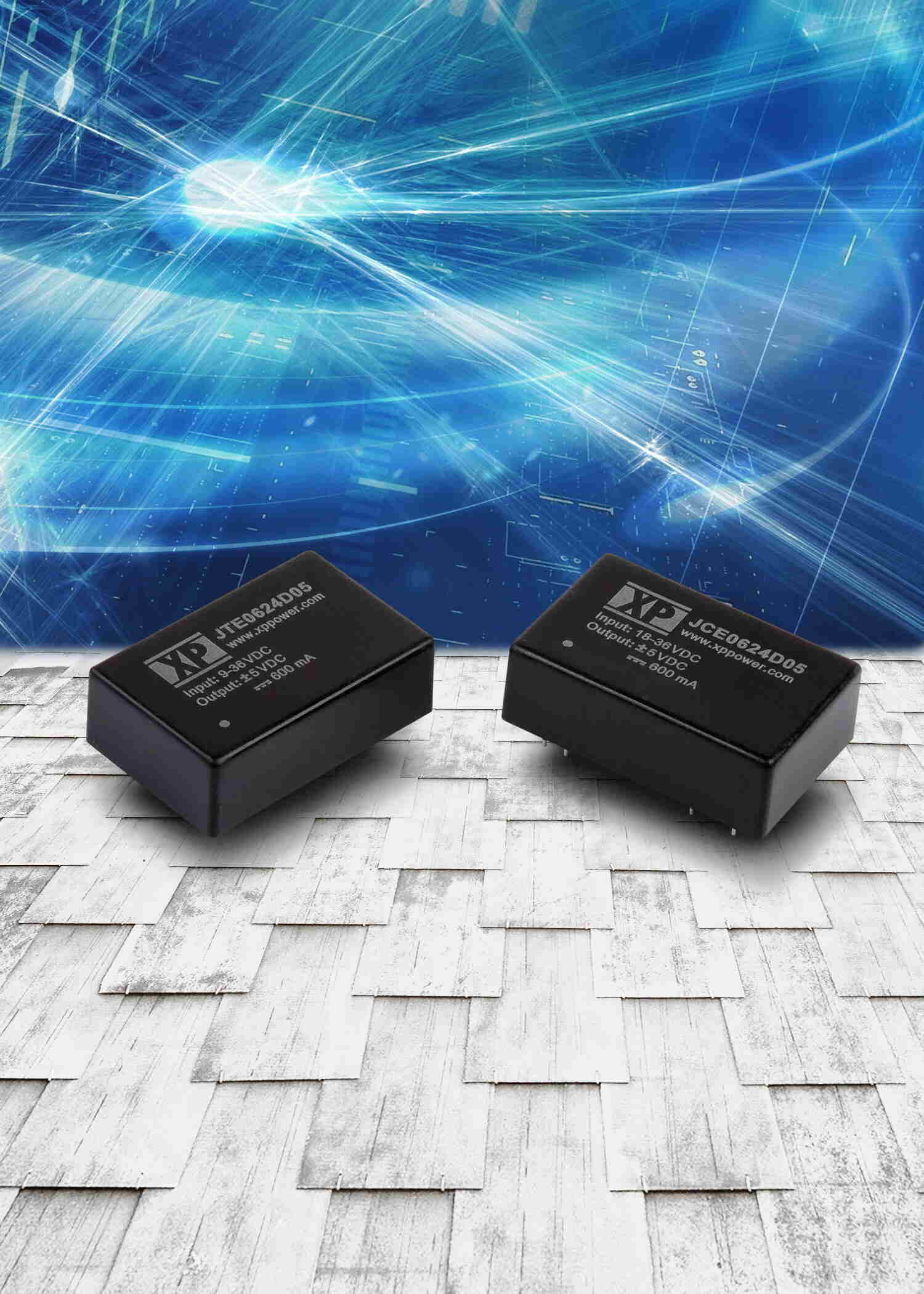

XP Power announced the JCE06 and JTE06 series of low cost compact 6 Watt DC-DC converters aimed at a broad range of mobile communications, industrial and transportation applications. Constructed in a plastic industry standard 24-pin DIP through hole mounting package, and measuring 1.25 x 0.80 x 0.40 inches (31.75 x 20.32 x 10.40 mm), the single and dual output units achieve a power density of 15 Watts per cubic inch and an efficiency of up to 84%.
Single output models are available with +3.3, +5, +12, +15 or +24 VDC outputs. Duals provide +/-3.3, +/-5, +/-12, +/-15 or +/-24 VDC outputs. The JCE06 accommodates a wide 2:1 input range and the JTE06 series an ultra wide 4:1 input range. All models cover the popular nominal input voltages of +12, +24 or +48 VDC.
Input to output isolation is 1,500 VDC across the range. An optional 3,000 VDC isolation model is available to order quoting suffix -H. A metal case option is also available by adding -M suffix to the part code at the time of order.
The converters suit a wide range of operating environments in temperatures from -40 to + 100 degrees C. No additional forced airflow or heatsinking is required, saving valuable board space and extra cost.
An under voltage input protection feature shuts down the converter below a set voltage in order to prevent damage to the converter. All models within both ranges meet EN55022 class A conducted EMC emissions without the need for any additional components. Prices range from $13.85 for a 500 pcs order of a single output JCE06 series and $14.00 for a 500 pcs order of the JTE06 series.
