Single Output Power Supplies Available Online

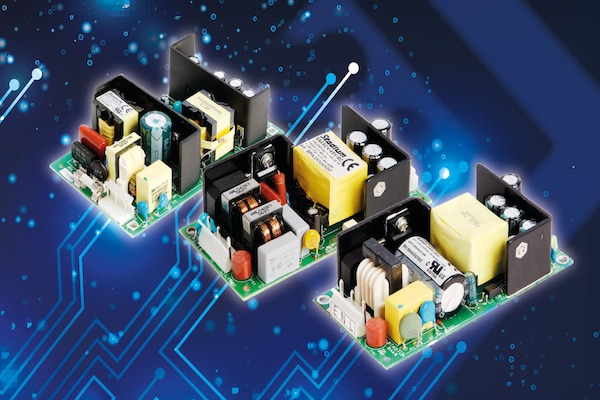

Stadium Power now can provide online its 12, 24 or 48 VDC outputs the SA60 has a 60 W output on a compact 2 x 4 in. platform and the SA100 provides 100 W in the industry standard 3  x  5 in. footprint. All models are CE Marked, have international safety agency approvals and meet the requirements of EN55022 'B' for conducted emissions. Specifically designed for LED lighting the SA48CV 48 V, 48 W single output power supply / LED Driver is also available to buy online. This low cost constant voltage output power supply measures just 2 x 4 in., features active PFC and meets EN61000-3-2 PFC Class C and EN55022 'B' for conducted noise.

The Stadium Power SA60 and SA100 have an input voltage range of 100-230 VAC over the frequency range 50 to 60 Hz and an operating temperature range of 0 to -50?C. Both models feature over voltage protection, thermal and short circuit protection and will operate in environments with humidity levels from 10 to 95% non-condensing. The SA100 also has output remote sense connections to maintain specified voltage to the load. Other output versions available including 5 V and 13.8 V and 24 V and 27.8 V and 32 V.
