200 - 425VDC Input DC-DC Converter Series Extended with Additional Output Voltages

Nov. 9, 2015

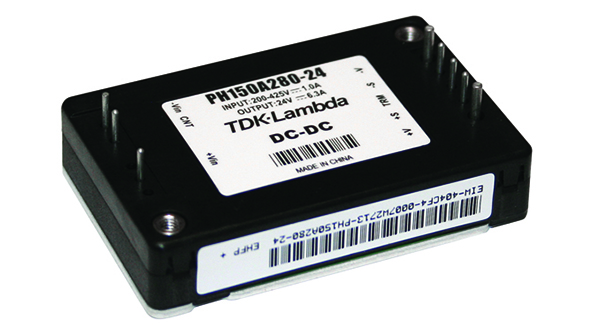

TDK Corporation recently introduced an extension to the TDK-Lambda PH-A280 series of DC-DC power modules with high voltage DC input.

TDK Corp. recently announced the introduction of an extension to the TDK-Lambda PH-A280 series of DC-DC power modules with high voltage DC input.  Operating from a wide range DC input of 200 to 425VDC, which is widely used in HVDC (High Voltage DC Current) applications, the PH-A280 range now includes 3.3V, 15V and 28V outputs.

The six new PH-A280 power modules are available in three output power levels - 75W, 100W and 150W. The complete product family encompasses nominal output voltages of 3.3V, 5V, 12V, 15V, 24V, 28V or 48Vdc; adjustable by -20% to +10% (±20% for 5V output models).  Efficiencies of up to 90% are achieved, an improvement of 5% over the prior PH series.

All modules operate at full load over a baseplate temperature range of -40 to +100°C making them suitable for liquid, air cooled or conduction cooled systems.  The dimensions follow the industry standard quarter brick format (37.2 x 12.7 x 58.3mm).

As standard, the PH-A280 units are equipped with remote sense, remote on/off, overvoltage and overcurrent protection circuitry and include a 5-year warranty.  All models have an input-to-output isolation of 3kVAC, are safety-approved to UL/CSA/EN 60950-1 and carry the CE mark in accordance with the LV Directive.

Main features and benefits:

  • Industry standard ¼ brick format
  • High efficiency of up to 90%
  • 200 to 425VDC input
  • Wide line up of output voltages from 3.3V to 48V
