15 and 20 W DC-DC Converters Feature 4:1 Input Range

Dec. 15, 2015

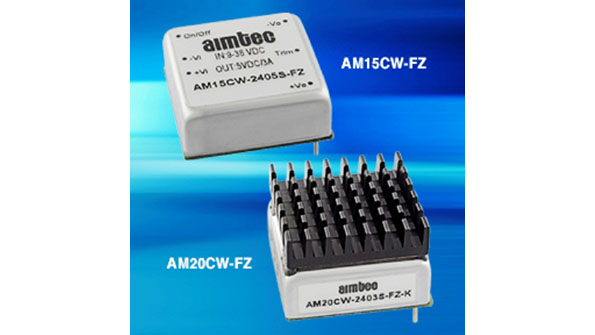

Aimtec's new AM15CW-FZ and AM20CW-FZ series DC-DC converters are 15 and 20 watt models respectively that operate with an extra wide input of 4:1.

Aimtec's new AM15CW-FZ and AM20CW-FZ series dc-dc converters are 15- and 20-watt models respectively that operate with an extra wide input of 4:1 (9-36, 18-75VDC input ranges) and are housed in a miniature 1x1 inch package. These products are feature rich with an input to output isolation of 1500 VDC, plus continuous short circuit protection, over voltage protection, remote on/off control, adjustable trim feature, and an operating temperature range of -40°C to +85°C.  The AM20CW-FZ ships with an installed heatsink to provide derating at 60°C. Both models come in single output options of 3.3, 5, 12, 15 and dual ±12, ±15 VDC.
