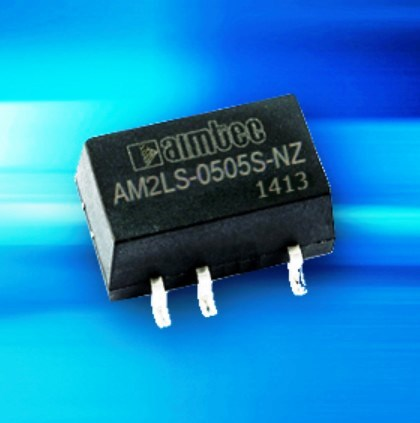

Aimtec's unregulated AM2LS-NZ series of 2-Watt power supplies offers isolation of 1500 or 3000 VDC and features continuous short circuit protection with auto recovery restart. The restart feature will work continuously until the short circuit condition is cleared and protects the converter, the load and the converter's input circuit from extremely high currents that can be caused by a short circuit.
Input voltage choices are 5, 12, 15 and 24 VDC. The output voltage can be 5, 9, 12, 15, or 24 VDC. AM2LS-NZ is available in a compact surface-mount (SMD) package measuring 12.70 x 11.20 x 7.25 mm. Operating at ambient temperatures from -40 °C to +105 °C (with derating starting at 71 ~ 85 °C depending on model), the AM2LS-NZ series is designed for versatility and can be integrated into a multitude of applications such as digital circuits, low frequency analog or relay drive circuits in industrial, telecommunication and computer systems.
Samples are available from stock and can be ordered immediately from any of Aimtec's global network of franchised distributors.
