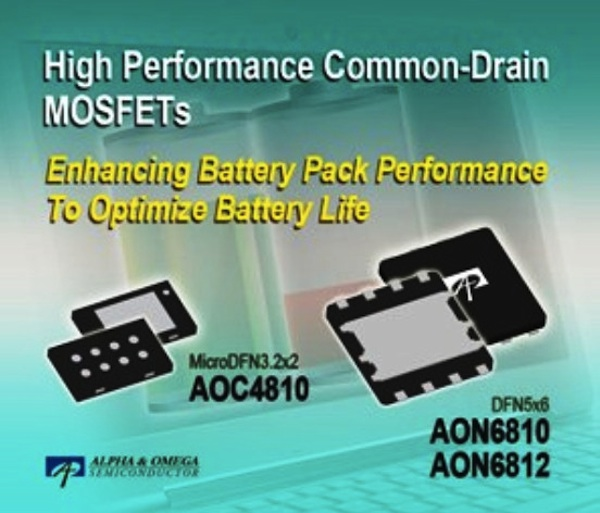

Alpha and Omega Semiconductor Limited (AOS) released a new dual MOSFET family in the common-drain configuration in both DFN 5 x 6 and Micro-DFN 3.2 x 2 packages. These devices are suitable for battery pack applications where two n-channel MOSFETs are connected back-to-back for safe charging and discharging as well as voltage protection. The products provide ultra-low RSS (source-to-source resistance) of less than 10 mOhms at 10V gate drive.
AON6810, AON6812, and AOC4810 provide ideal solutions for enhancing battery pack performance in the latest generation Ultrabooks and tablets, where low conduction loss is a must for optimizing battery life.
The new devices use the latest AlphaMOS(TM) technology to accomplish very low RDS(ON) along with 4 kV ESD protection to enhance battery pack safety. AON6810 and AON6812 use a bottom-exposed DFN5x6 package for enhanced thermal capability. The AON6812 features a low 8 mOhm max total RSS (source-to-source) resistance at 10 V drive. Rated with a 30 V breakdown voltage, it is capable of charging and discharging a laptop battery pack with the least amount of power loss and heat dissipation. The AON6810 provides an extra level of protection with an internal temperature sense diode that provides first-hand thermal information to the battery control IC. By utilizing the temperature sense pins of AON6810, designers can accurately monitor the MOSFETs' thermal condition in a real time basis to prevent any abnormal overheating.
To meet the demand of ultra-thin battery packs, the AOC4810 takes advantage of AOS's innovative Micro-DFN package, which features an ultra-low profile of only 0.4 mm. Unlike conventional CSP (chip scale packaging), the Micro-DFN eliminates the risk of die chipping by encapsulating the silicon to provide full protection to the die as well as providing excellent moisture isolation. When board space is a key concern, AOC4810 provides a great option to further enhance power density. With dimensions of only 3.2 mm x 2 mm, AOC4810 offers a maximum RSS level of 8.8 mOhms to minimize conduction loss and heat dissipation.
The AON6810, AON6812, and AOC4810 are all RoHS and Halogen-Free compliant.
