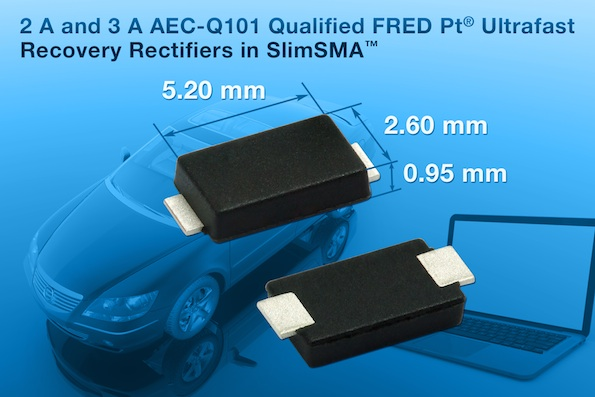

FRED Pt® Ultrafast Recovery Rectifiers in Low-Profile SlimSMA Package

Aug. 4, 2014
Vishay Intertechnology, Inc. introduced eight new 2 A and 3 A FRED Pt® Ultrafast recovery rectifiers in the compact, low-profile SlimSMA (DO-221AC) eSMP® series package.

Vishay Intertechnology, Inc. introduced eight  2 A and 3 A FRED Pt® Ultrafast recovery rectifiers in the compact, low-profile SlimSMA (DO-221AC) eSMP® series package. Combining extremely fast and soft recovery characteristics with low-leakage current and low-forward voltage drop, the AEC-Q101-qualified rectifiers reduce switching losses and over-dissipation in automotive and telecom applications.

The Vishay Semiconductors FRED Pt rectifiers released today offer reverse voltages of 100 V and 200 V, reverse recovery time down to 25 ns, and typical forward voltage drop of 0.74 V for the 2 A and 0.72 V for the 3 A devices. With a compact footprint and low profile of < 1 mm, the SlimSMA saves significant PCB space compared to standard SMA, SMB, and SMC packages, while increasing power density to lower overall costs.

The FRED Pt rectifiers are optimized for DC/DC converters in automotive engine control units (ECU), antilock braking systems (ABS), and LED lighting, in addition to telecom DC/DC bricks. The devices feature a planar structure and platinum-doped lifetime control to guarantee high overall performance, ruggedness, and reliability characteristics in these applications. The components offer an operating junction temperature to + 175 °C for a more robust design.

The devices provide an MSL moisture level of 1 per J-STD-020, LF maximum peak of + 260 °C, meet the JESD 201 class 2 whisker test, and are RoHS-compliant and halogen-free. The rectifiers are ideal for automated placement and allow for automated optical inspection (AOI) in automotive systems.

Samples and production quantities of the new FRED Pt rectifiers are available now, with lead times of eight weeks for larger orders. Pricing for U.S. delivery only starts at $0.10.
