Photodiode Measures 331 mm²

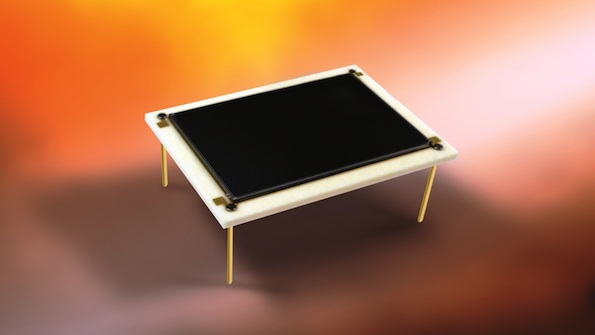

Opto Diode introduces the SXUV300C photodiode with a large, 22.05 mm x 15.85 mm rectangular active area. These photodiodes detect energy from extreme ultraviolet (UV) wavelengths of 1 nm to 1000 nm.  With 331 mm2 of active area, the SXUV300C offers a sizable surface for reflective scatter measurements of high-powered UV lasers. In addition, these photodiodes provide excellent, stable responsivity even after prolonged exposure to high-powered UV radiation.

The company's full line of IRD ultraviolet photodiodes enables a broad range of UV measurements. The IRD product line supports the direct measurement of photons or low-energy electrons, high-power laser measurements in the 1 - 190 nm spectral range, or 100% quantum efficiency from 190 - 1100 nm. Designed to maximize measurement repeatability and reliability, the SXUV300C is ideal for new or existing high-powered UV laser-monitoring systems.
