60A Gallium Nitride Power Transistor

Aug. 10, 2015
GaN Systems Inc. has introduced the latest addition to its range of E-mode GaN-on-Silicon high power transistors.

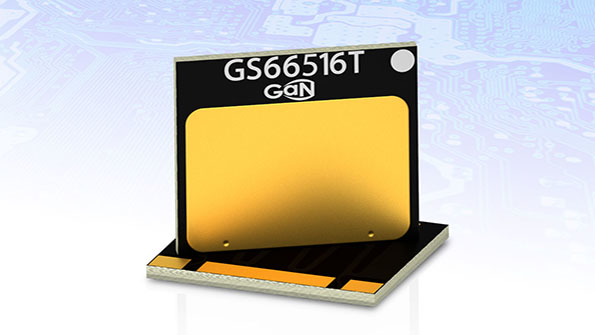

GaN Systems Inc. has introduced the latest addition to its range of E-mode GaN-on-Silicon high power transistors based on its three core proprietary technologies.  The new GaN high-power enhancement-mode device, the GS65516T, boasts a high current capability on the market at 60A and further expands GaN Systems' range of power switching semiconductors.

The GS65516T 650V E-mode power switch features GaN Systems' new proprietary topside cooling configuration announced in March this year, which allows the device to be cooled using familiar and conventional heat sink or fan cooling techniques.  It is based on the company's ultra-low FOM Island Technology® die design, packaged in low inductance and thermally efficient GaNPX™ packaging and measures 9.0mm x 7.6mm x 0.45mm.  Additional features of the GS65516T 650V E-HEMT include reverse current capability, integral source sense and zero reverse recovery loss.  Dual gate pads help engineers achieve optimal board layout.

The GS65516T suits high frequency, high efficiency power conversion applications such as on-board battery chargers, 400V DC-DC conversion, inverters, uninterruptable power supplies (UPS) and VFD motor drives, AC-DC power supplies (PFC and primary) and VHF small form factor power adapters.  The GS65516T is available to customers packaged on tape and reel or mini-reel, through GaN Systems' worldwide distribution partners.  Pricing is available on request.

GaN Systems is the first company to have developed and brought a comprehensive product range of devices with current ratings from 8A to 250A to the global market - its Island Technology® die design, combined with its extremely low inductance and thermally efficient GaNPX™ packaging and Drive Assist technology means the company's GaN transistors offer a 40-fold improvement in switching and conduction performance over traditional silicon MOSFETs and IGBTs.  Devices are available now through its worldwide distribution network
