12 V and 20 V MOSFETs in a Dual Asymmetric Package

Oct. 25, 2016

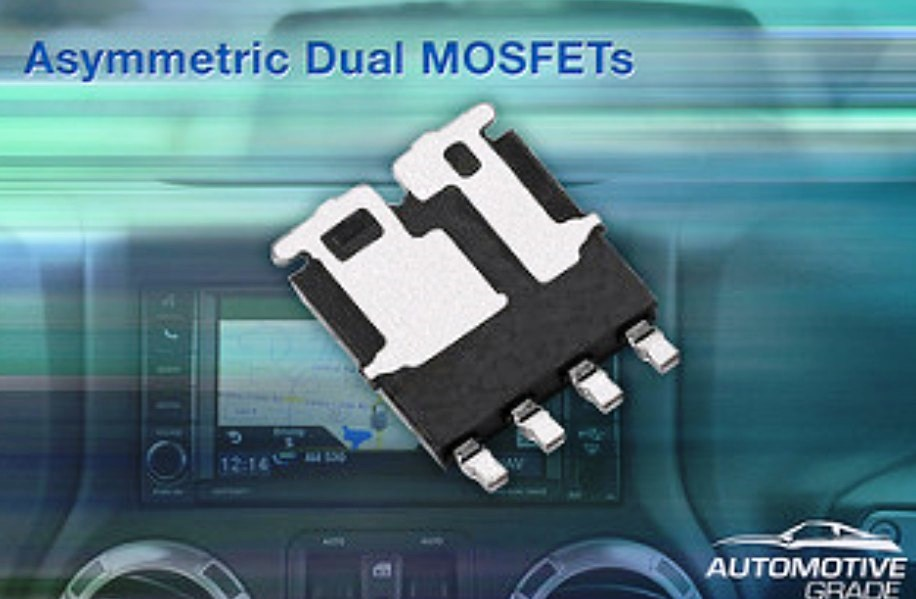

To save space and power in high-efficiency synchronous buck converters for automotive applications, Vishay Intertechnology introduced the industry's first AEC-Q101-qualified 12 V and 20 V MOSFETs in a dual asymmetric power package.

To save space and power in high-efficiency synchronous buck converters for automotive applications, Vishay Intertechnology, Inc. introduced the industry's first AEC-Q101-qualified 12 V and 20 V MOSFETs in a dual asymmetric power package. The Vishay Siliconix SQJ202EP n-channel TrenchFET® devices each combine a high- and low-side MOSFET in the compact 5 mm by 6 mm PowerPAK® SO-8L dual asymmetric package, with low-side maximum on-resistance down to 3.3 mW.

By co-packaging two MOSFETs in an asymmetric package - with a larger low-side MOSFET for lower on-resistance and smaller high-side MOSFET for faster switching - the 12 V SQJ202EP and 20 V SQJ200EP provide high-performance alternatives to standard dual devices, which restrict the optimum combination of MOSFETs for high-current, high-frequency synchronous buck designs. Compared to using discrete components, the devices occupy less board space and can facilitate more compact PCB layouts.

These devices are intended for applications such as infotainment, telematics, navigation, and LED lighting. The SQJ202EP is well-suited for applications with bus voltages ≤ 8 V and offers extremely low maximum on-resistance down to 3.3 mW for the Channel 2 low-side MOSFET. For applications with higher bus voltages, the 20 V SQJ200EP features a slightly higher maximum on-resistance of 3.7 mW. Both parts are 100 % tested for gate resistance and avalanche, and they are RoHS-compliant and halogen-free.

Samples and production quantities of the SQJ200EP and SQJ202EP are available now, with lead times of 12 weeks for large orders. Pricing for U.S. delivery starts at $0.29 per piece in 100,000-piece quantities.
