VID Interface Controller for Core-Voltage Regulators
May 1, 2013
Texas Instruments Incorporated (TI) introduced a power management controller with 4- and 6-bit voltage identification (VID) interfaces.

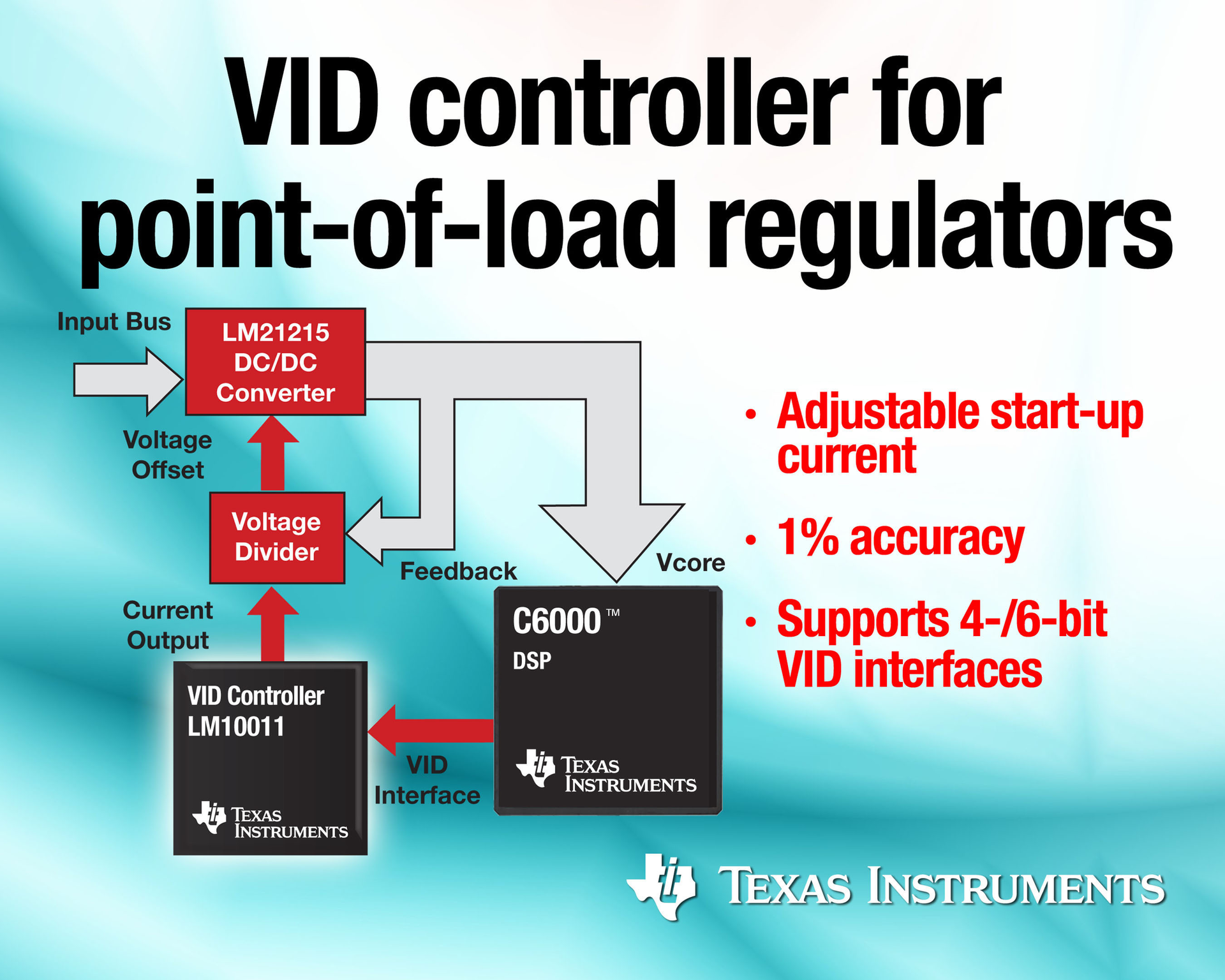

Texas Instruments Incorporated (TI) introduced a power management controller with 4- and 6-bit voltage identification (VID) interfaces. The LM10011 is the first VID controller designed to operate along with a point-of-load regulator to adjust the core voltage (VCORE) of a VID-enabled processor, such as TI's C6000™ power-optimized DSPs and KeyStone multicore DSPs. The LM10011 enables TI's DSPs to realize their full power savings capability to reduce power consumption in wireless infrastructure applications. The controller features industry-leading one-percent output accuracy and adjustable output current during start-up. For more information and samples, visit www.ti.com/lm10011-pr. The LM10011 VID controller operates over a 2.97-V to 5.5-V input voltage range and is a cost-effective, easy-to-use solution. It can be used with any point-of-load regulator that has a feedback node, such as TI's high-performance 15-A LM21215 and 25-A TPS56221 synchronous buck regulators. The LM10011 offers 16 pin-programmable current output options during start-up, allowing the DSP VCORE to power up various voltages to enable greater system flexibility and reliability.
Features:
16 selectable start-up current options offer flexibility for system operation and higher system reliability. One-percent output voltage accuracy is fully compliant with C6000 VID table.
2.97-V to 5.5-V input voltage range supports both 5-V and 3.3-V bus voltages.
Pin-selectable VID format allows 4-bit and 6-bit VID patterns.
The LM10011 VID controller is available in volume now from TI and its authorized distributors. Offered in a 10-pin SON package that measures 3-mm by 3-mm by 0.8-mm, the LM10011 is priced at US$0.60 in 1,000-unit quantities.
