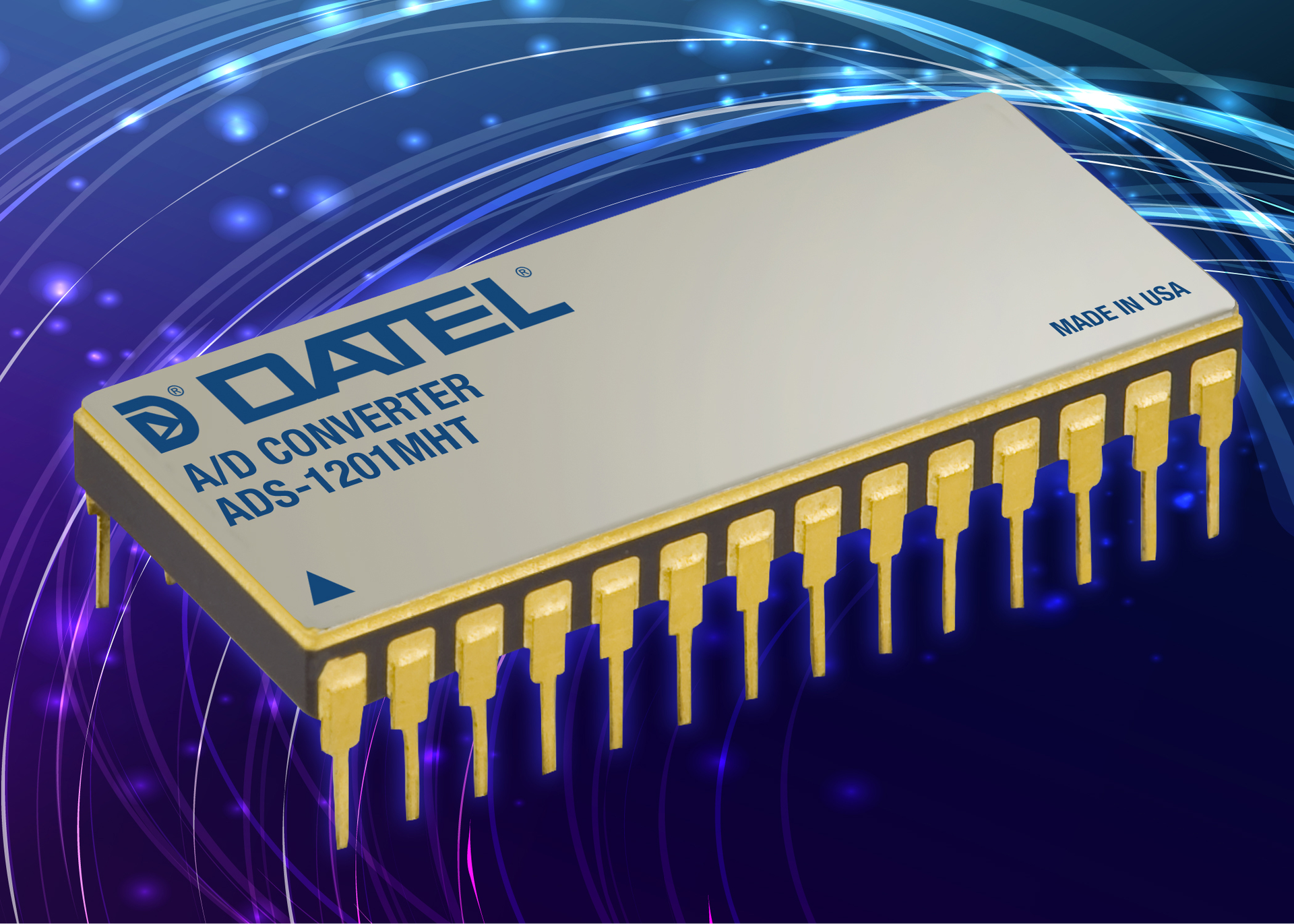

A line of data acquisition products from Datel are guaranteed at -55°C to 200°C. The reliable ADS-1201 series is a 12-bit, 1MHz analog to digital converter housed in a small 28-pin DDIP or SMT hermetically sealed ceramic package. Each unit is 100 percent tested for performance in the -55°C to 200°C temperature range to assure compliance with all published specifications. In addition, the ADS-1201 has no latency delays, which enables it to be used in multiplexed analog input applications. Other key benefits include unipolar and bipolar input range, guaranteed 1,000-hour continuous operating life at 200°C, and precision internal reference to provide guaranteed tight static specifications.
The advanced technology behind the dependable new converter line is responsible for its superior performance at extreme high temperatures. Specifically, the ADS-1201 series is fabricated on thick film ceramic, with low temperature drift thin film resistors on 96 percent alumina substrate and 250°C rated passive components. All of the ultrasonic and thermo-sonically wire bonded high temperature ICs are qualified and characterized to meet the demanding -55 to +200°C operating temperature. The ADS-1201 series was developed and is manufactured using processes that originate with DATEL's MIL-PRF-38534 standards and controls in a certified Class H facility in Massachusetts. There are fewer than 40 Class H facilities in the world, making DATEL's capabilities all the more competitive.
The ADS-1201 series is available in two options, the 28-pin DIP package (ADS-1201MHT) and the 28-pin SMT package (ADS-1201GHT). Additional models are in development. Pricing is in the $250 range for 100 piece production quantities, with delivery from stock to 12 weeks.
