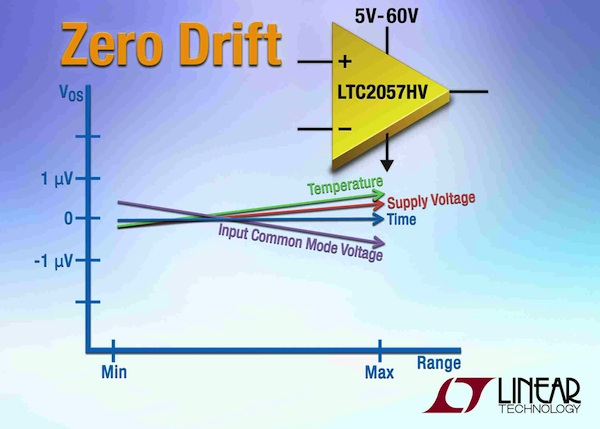

The LTC2057HV a zero-drift amplifier from Linear Technology has self-calibrating circuitry that provides high DC precision and stability over changes in temperature, time, input range and supply voltage. With 5 µV input offset voltage, 0.025 µV/°C offset drift and 220 nVP-P low frequency noise with no 1/f noise, the LTC2057HV offers more than 140dB dynamic range while operating on a 60 V (±30 V) supply. This wide dynamic range enables tiny signals to be amplified in the presence of much larger signals without saturating the amplifier or losing precision.
For applications requiring supply voltages up to 36 V, a lower supply version of LTC2057 is available. Specified over a -40 °C to 125 °C temperature range, the LTC2057 and LTC2057HV offer an optimal combination of low voltage noise, low current noise and low input bias current, while the zero-drift architecture cancels 1/f noise. Spurious artifacts normally associated with zero-drift amplifiers are suppressed, further extending the dynamic range, stability and useful signal bandwidth. The input common-mode range includes the negative rail and the output swings rail-to-rail, making the LTC2057 suitable for single- and dual-supply industrial, instrumentation and automotive applications.
The LTC2057 is specified for 30V supply operation while the LTC2057HV can operate on supplies up to 60V. Both versions also work on 4.75V supplies and are fully specified over -40 °C to 85 °C and -40 °C to 125 °C temperature ranges.
The LTC2057 is available in 3 mm x 3 mm DFN, MSOP-8 and SOIC-8 packages, as well as an MSOP-10 package with a pinout that enables a guard ring to be easily routed around the input to preserve the high precision and low noise performance at high source impedance. Pricing starts at $1.54 each for the LTC2057 and $2.19 each for the LTC2057HV in quantities of 1000.
