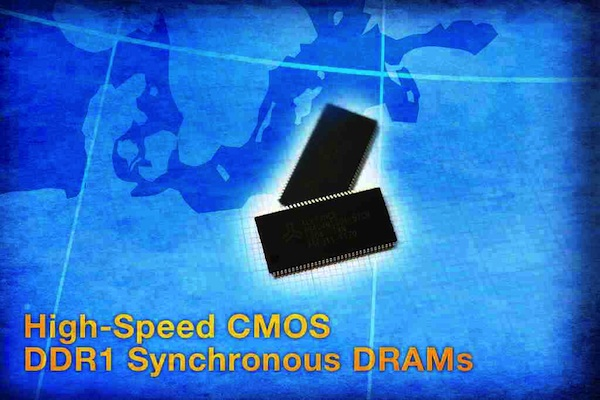

Alliance Memory introduced a line of high-speed CMOS double data rate synchronous DRAMs (DDR1 SDRAM) with densities of 64 Mb (AS4C4M16D1), 128 Mb (AS4C8M16D1), 256 Mb (AS4C16M16D1), and 512 Mb (AS4C32M16D1).
The devices provide reliable drop-in, pin-for-pin-compatible replacements for a number of similar solutions in medical, communications, industrial, and consumer products requiring high memory bandwidth, and they are particularly well-suited to high-performance PC applications. Internally configured as four banks of 1M, 2M, 4M, or 8M word x 16 bits with a synchronous interface, the DDR1 SDRAMs operate from a single +2.5-V (± 0.2 V) power supply and are lead (Pb)- and halogen-free.
The AS4C4M16D1, AS4C8M16D1, AS4C16M16D1, and AS4C32M16D1 feature a fast clock rate of 200 MHz, a commercial temperature range of 0 °C to 70 °C, and are offered in the 66-pin TSOP II package with a 0.65-mm pin pitch. The DDR1 SDRAMs provide programmable read or write burst lengths of 2, 4, or 8. An auto pre-charge function provides a self-timed row pre-charge initiated at the end of the burst sequence. Easy-to-use refresh functions include auto- or self-refresh while a programmable mode register allows the system tochoose the most suitable modes to maximize performance.
Samples of the new DDR1 SDRAMs are available now, with lead times of eight weeks for production quantities. Pricing ranges from $0.85 to $1.60 per piece.
