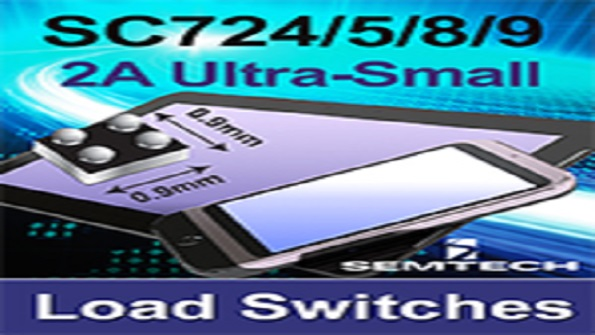

Semtech Corporation announced the SC724/5/8/9 2A load switch platform in a tiny 0.76 mm x 0.76 mm, 4 bump chip scale package (CSP) with industry leading on-resistance (RON) of just 36 mW.
The SC724/5/8/9 switches offer a 2 A, 1.1 V to 3.6 V power rail with controlled turn-on and turn-off profiles. The SC724 and SC728 provide fast turn-on (19.5 µs at 1.8 Vin) and float the output when disabled, while the SC725 and SC729 provide slower turn-on (490 µs at 1.8 Vin) and discharge the output when disabled. The load switches are ESD hardened to greater than 3kV for robust circuit protection. Se
Key Features of SC724/5/8/9:
· VIN range: 1.1 V to 3.6 V
· IOUT: Up to 2 A
· Very low RON of 36 mW
· Controlled turn-on and turn-off (optional fast/slow turn-on, and auto-discharge)
· Packaging: CSP, 0.76 mm x 0.76 mm x 0.60 mm, 4-bump connection at 0.5 mm pitch
Applications
Portable Applications: Wearable electronics, portable video cameras, smart phones, tablet computers
Non-Portable Applications: HDTVs, set-top boxes, networking devices
The SC724/5/8/9 parts are available immediately in production quantities and are priced at $0.32 each in 5,000-piece reels. The ordering codes are SC724CSTRT, SC725CSTRT, SC728CSTRT and SC729CSTRT. Evaluation boards are also available.
