Integrated Power Module Mounts onto Heat Sinks

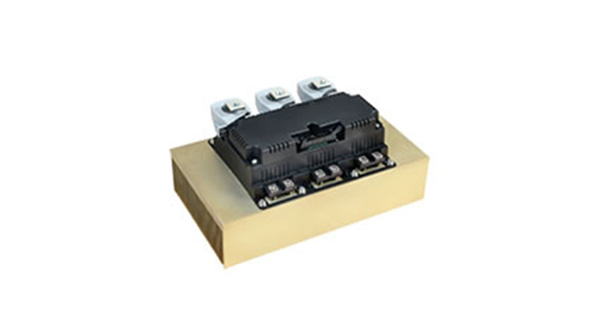

The Powerex Integrated Power Module (PIPM) has rated power outputs from 75-229 KW and operates on DC bus voltages from 400 to 800 VDC and switching frequencies of up to 20 kHz. The power module can be mounted on various heat sinks, including both forced air and liquid cooled options, dependent upon application requirements.

Applications include three-phase inverters; DC/DC Convertors; choppers; half or full bridge; and power supply applications. The PIPM is compatible with the NX-Series of Mitsubishi IGBT devices and is ideally suited for energy storage, uninterruptable power supplies (UPS), motor drives, solar, wind, photovoltaics, EV and hybrid electric vehicle applications.
