TDK Corporation announces the expansion of TDK-Lambda's Z+ Series of programmable power supplies, which now includes the new 800-watt models in addition to the previously released 200, 400 and 600-watt models. These high-density, high efficiency, 2U format, bench-top and rack mountable power supplies are designed to meet the demands of a wide variety of ATE, Laboratory and OEM applications, including: Test & Measurement, Semiconductor Burn-in, Component Test, LED/Laser Test, RF Amplifiers, Electromagnetic, and Electrochemical applications.
TDK-Lambda's new Z+800 provide 800-watts of output power with a selection of output voltage ranges that cover from 0 to 100Vdc with output currents up to 72A. The Z+ 800W are 66% smaller and 67% lighter than previous generations and similar products, and provide a 200% increase in power density. All Z+ standard models are only 3.27" high by 2.76" wide, so up to 6 units can be installed in the optional 19" rack housing and blanking plates are available for unused slots.

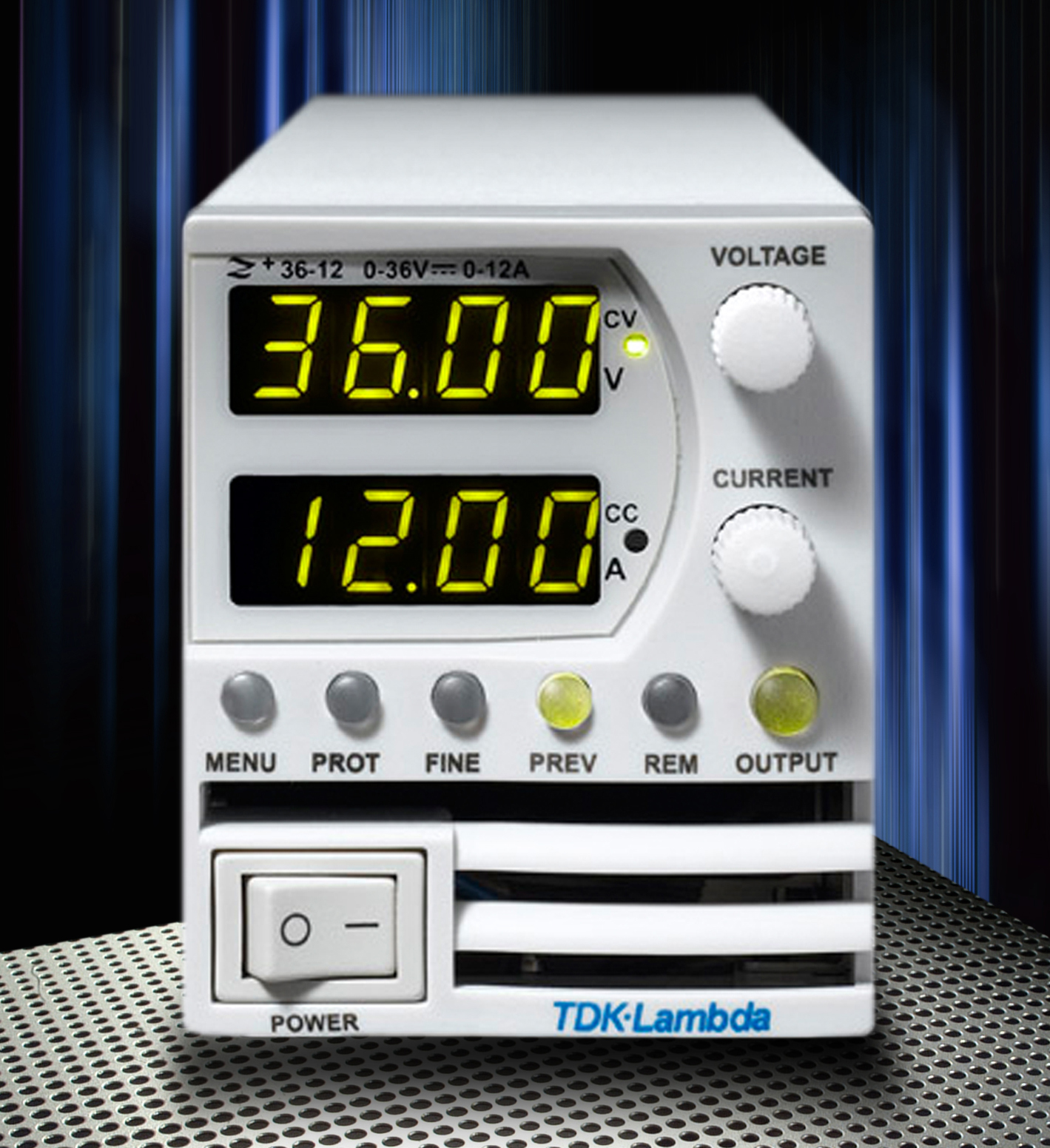

The Z+ 200W, 400W, 600W and 800W programmable power supplies have comprehensive front panel controls with individual rotary encoders for output current and voltage, and access to power supply settings such as OVP level, start-up modes, remote control and monitoring parameters. Separate 4-digit volt and current displays are provided along with function/status LEDs, pushbuttons for output preview, output on/off, fine/coarse and other features. Options for front panel output-jacks and multiple-unit housings are available for bench-top applications. Later this year the 600W models will be added to the Z+ Series.
All Z+ models include built-in arbitrary waveform generation and storage for up to 4 pre-programmed functions; making them ideal for test and simulation tasks in the Automotive, Solar Panel and LED/Laser industries, to name a few. These power supplies feature very fast command processing times, output sequencing and two programmable output pins that, for example, can be used to control isolation relays. Up to 12 voltage or current values can be programmed using the waveform creator software provided and 4 waveforms can be stored in the Z+ unit's memory. More complex waveforms can be created using LabView®. These waveforms can be either repetitive or single-shot and injected into the system under test. The results can be analyzed confirming the proper or faulty operation of the powered device or system.
All models within the Z+ Series can operate in a constant-current or constant-voltage mode from a wide 85 to 265Vac input. They feature active power factor correction, variable speed fans and extensive safety features including user-selectable Safe-Start and Auto-Re-Start. With Safe-Start, the power supply returns to the last used settings after a power interruption, but with the output disabled. With Auto-Re-Start, the supply resumes normal operation without intervention after a power interruption, thereby meeting typical requirements for unattended use.
The Z+ 800W series are available now and priced from $1990.00 each in 1-9 quantities.
