Four-Channel Digital Oscilloscope Captures Up To 60,000 Frames

Nov. 27, 2013

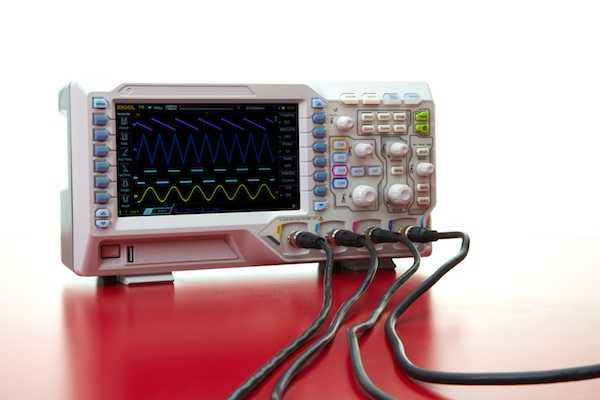

Rigol Technologies, Inc. introduces the DS1000Z Series digital oscilloscope, the latest addition to the Rigol scope family, featuring their UltraVision technology.

The DS1000Z Series digital oscilloscope, the latest addition to the Rigol Technologies, Inc. scope family, features their UltraVision technology. As another best-in-class testing instrument from Rigol, the new DS1000Z is available in 70 or 100 MHz bandwidths and provides the performance expected from a modern 4 channel oscilloscope, but at the cost of a traditional 2 channel scope.

Easy-to-use and ultra-modern, the 4 channel DS1000Z series features an excellent memory depth of 12 Mpts standard, which can be extended to an optional 24 Mpts. The DS1000Z series has a 1GSa/s max. sample rate (single channel), while the DS1000Z-S includes an additional 2 built-in 25 MHz waveform generator channels. DS1000Z oscilloscopes also feature a fast waveform capture rate of 30,000 wfms/s (max).

Using Rigol's innovative UltraVision technology, the DS1000Z series can capture up to 60,000 frames real-time waveform recording. In addition, compact and lightweight DS1000Z scopes have powerful trigger functions and broad analysis capabilities, all easily viewed on a 7-in. WVGA screen with multiple intensity levels of waveform display. Rigol offers complete connectivity for their DS1000Z oscilloscope, including LAN (LX-C), USB Host & Device, and USB-GPIB (optional) connections. Optional serial buses triggering and decoding are also available.

Prices for the DS1000Z series start at less than $600. Some models are in stock and available immediately, others may have up to a several week lead-time.
