USB Lab Instrument With Six-In-One Function

Dec. 2, 2013

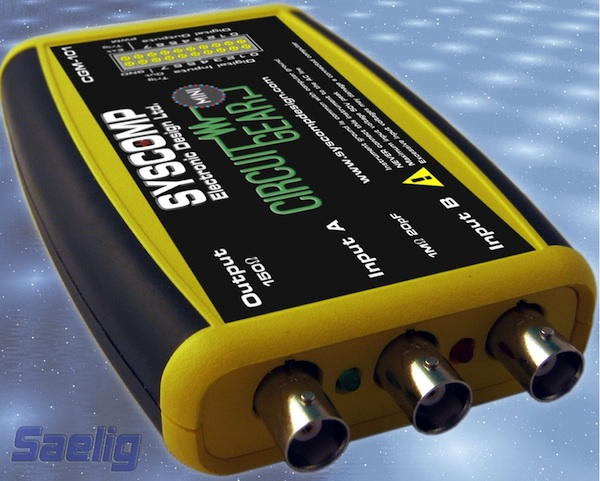

Saelig Company, Inc. has introduced the new CGM-101CircuitGear Mini - a unique, low-cost PC-based instrument which provides the features of six devices in one USB-powered compact box: 2-channel 11-bit 2MSa/sec 200kHz oscilloscope, 2-channel spectrum analyzer, 2MSa/s 8-bit arbitrary-waveform/standard-function generator with 8 digital I/O lines.

The CGM-101CircuitGear Mini from Saelig Company, Inc. is a low-cost PC-based instrument which provides the features of six devices in one USB-powered compact box: 2-channel 11-bit 2 MSa/sec 200 kHz oscilloscope, 2-channel spectrum analyzer, 2 MSa/s 8-bit arbitrary-waveform/standard-function generator with 8 digital I/O lines. It also functions as a network analyzer, and a PWM output source - all for less than $100! The oscilloscope and waveform generator can also work together to form a vector network analyzer. The USB interface allows the recording, output and printing of all waveforms or even updating the firmware as new features become available.

The CGM-101 CircuitGear Mini'sOscilloscope capability provides a two-channel 11-bit 20 mV/div to 5V/div (+/-0.25 V p-pto+/-25 V p-p with 1X Probe; +/250 V p-p with 10 X Probe) 200 kHz basic scope, also offering sophisticated marker measurements, andtriggering (normal, auto, single-shot and pre-trigger) with a time-base adjustable from 500 ns/division to 20 s/division. A 1 k sample/channel data buffer allows pre-trigger signal or "strip-chart" viewing. X-Y Plot, spectrum analysis, and waveform math are also included.  The  two-channel FFT spectrum analyzer offers marker measurements, and, when used with the internal signal generator, displays Bode plots and performs vector network analysis,showing gain and phase values in real-time.

TheCircuitGear CGM-101's Signal Generator is an 8-bit 0 Hz to 200 kHz signal source, offering sine/square/triangle/sawtooth waveforms to +/-2.75 V, as well as being capable of outputting arbitrary or preloaded waveforms like ECGs. Connecting the generator signal to a circuit under test enables measurements with the oscilloscope and/or  spectrum analyzer.

The compact (4.6 x 3.1 x 0.95 in. - 117 x 79 x 24 mm) USB port-powered CGM-101 CircuitGear Mini also offers eight TTL I/O lines for PWM or other uses such as trigger in/out.

The visual interface software provided makes control and display of information very intuitive, and users of bench-top instruments will immediately feel comfortable with the on-screen controls. The oscilloscope, generator, and digital I/O are operated from a custom open-source Tcl/Tk software GUI included with the hardware, which runs under Windows, Linux, Unix, and Mac operating systems. Because the software  is Open Source, the code can be read and even added to or customized.  The command set is compatible with MATLAB®, LabVIEW and virtually any programming language.

Aimed especially at teaching establishments, project-based electronics lab teaching materials are also available for use with CircuitGear CGM-101. Ideal for labs, education, and any engineer's toolbox,it is available now from stock from Saelig Company, Inc., Fairport,  NY,  at only $99.95.
