Stadium Power has increased the range of products available for customers to purchase from stock online. Rated from 6A to 60A and including 3 Phase and DIN Rail types.

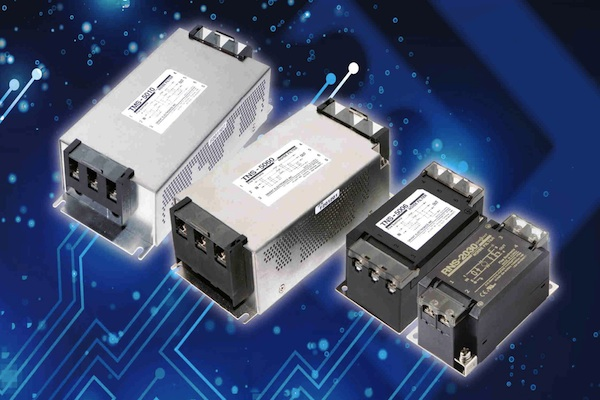

Two models are available for 3-phase applications. The Stadium Power TNS series offers a 1-stage filter design housed in a plastic case/safety cover and has an optional DIN-Rail mounting kit and the TMS filter series is a 2-stage unit with a steel enclosure. Both models have a current range from 6 to 60 A at up to 500 V max.
Two families of DIN-Rail mounted EMC filters are also available from Stadium Power. Designed for single phase applications and rated at 6 to 30 A at up to 250 V the RNS series of are a 1-stage design and the RMS series meet 2-stage filter requirements. Both models are low leakage current designs and are supplied complete with a safety cover
All Stadium Power offer high attenuation characteristics over the range 150 KHz to 1 MHz, are supplied with easy push-down terminal blocks to provide simple and fast connection and operate over the temperature range -25 to +85 oC and have full international safety agency approvals.
Typical applications include industrial equipment, computer and IT systems, and digitally controlled systems
