Raltron Electronics Corp. released its Model R1612 Microprocessor Crystal at 1.6 x 1.2 x 0.4 mm in size addressing the ever increasing demand for smaller size components
Featuring ultra-small, ultra-thin size; with automatic processing and reflow capability and its excellent use for high density usages, make the R1612 a superior choice for Applications such as: embedded computing devices, cameras, wearable devices, storage, personal digital devices, wireless applications, high density applications, microprocessor and DSP clocks, portable medical devices, alarms and utility metering.

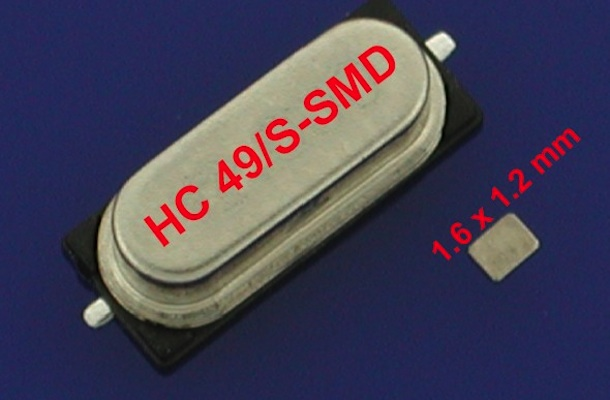

The R1612 surface mount crystal is in a l.6 x l.2 x 0.4mm ceramic package, the smallest size crystal available to date. This smaller size crystal takes up approximately 50% less surface area than most typical crystals on the market, widening the range of available applications. The frequency range is 26MHz to 60MHz, with wider usage frequencies of 26, 27, 32, 40, and 50MHz. The available frequency tolerances at room temperature are l5 ppm and 30 ppm. Temperature stability ranges from 10 ppm to 50 ppm while the operating temperature ranges from -10 °C to +60 °C standard, to -20 °C to +75 °C extended.
Sample availability is at a 4 weeks turnaround with quantities currently quoted at $2.00 each in lots of 10 pieces with a 6 - 8 week delivery ARO.
