Behlman Electronics, Inc. has introduced two new power factor corrected AC Power Sources/Frequency Converters. These carry the CE Mark essential for users in member states of the EU and EFTA countries Iceland, Norway, Switzerland and Liechtenstein, plus Turkey.
The Behlman PF1350 provides three fixed, selectable output frequencies of 50 Hz, 60 Hz and 400 Hz, with two voltage ranges; 0-135 VAC and 0-270 VAC. From local power inputs of 95-270 VAC, this unit delivers 1350 VA of clean, regulated AC power @ 10 Amps Maximum. It is ideal for export testing and operating equipment manufactured in a foreign country, and will simulate any worldwide utility, aircraft and shipboard power. In addition to Power Factor Correction (PFC), benefits include clean sine wave output with excellent line and load regulation, high efficiency, low harmonic distortion, and a unique overload protection system that folds back voltage to maintain rated output current without waveform distortion.

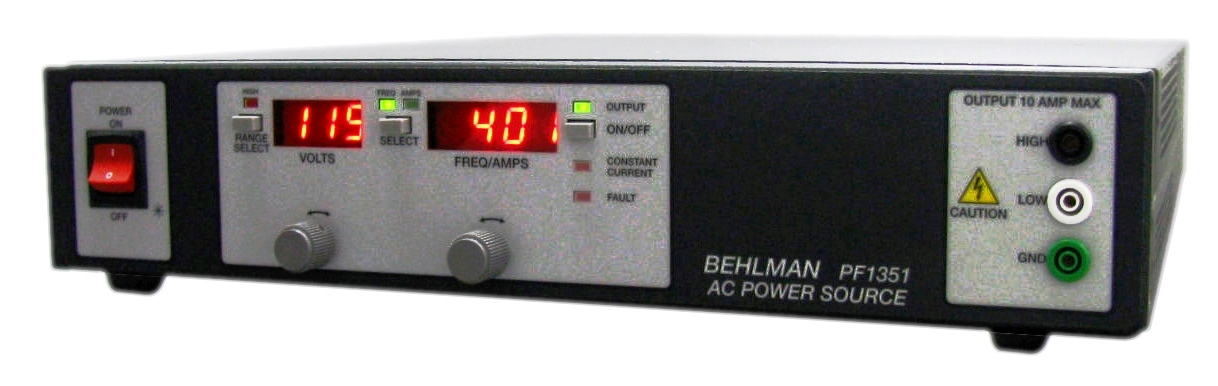

The Behlman PF1351 does everything the Model PF1350 does, and more. It features a continuously variable output frequency range from 45 HZ to 500 Hz, and can be controlled from the front panel or remotely using an optional RS232 or IEEE-488 interface, and an optional 45 Hz to 1000 Hz output frequency range is available.
Both the PF1350 and the PF1351 are compact 3.5" high bench-top units that easily and economically convert for rack mounting.
