3-Phase Power Measurement Modules

April 7, 2014
WAGO's 3-Phase Power Measurement Modules are cost-effective measurement devices.

WAGO's 3-Phase Power Measurement Modules can transfer metrics via fieldbus (e.g., BACnet, EtherNet/IP or PROFIBUS) with WAGO's 750 series fieldbus independents to higher-level systems for machine protection and energy tracking.

WAGO-I/O-CHECK software simplifies parameterization and energy analysis via a four-quadrant display that shows if a load is inductive or capacitive, and whether it's producing or consuming. I/O-CHECK also offers an easy-to-view energy dashboard, 3-phase and single phase energy detail, harmonic display to the 41st harmonic and simple configuration.

Beyond measurement, the 750-494 and 750-495 can:

a. Guide preventive maintenance - Pinpoint machinery with increasing energy draws, which often signals a need for maintenance.

b. Support ISO 5001 Energy Management initiatives - Measurement data from 750-494 and 750-495 can be used to collect and analyze energy usage.

c. Localize disturbances such as voltage spikes.

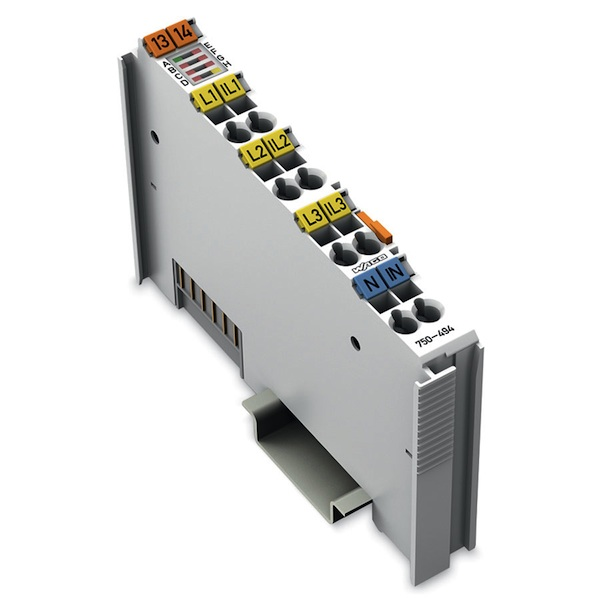

The 750-494 monitors 480 V systems and has an option for operating in harsh environments with temperatures of -20 °C to +60 °C. The 750-495 tracks characteristics for a 480/690 V network and has a variant to connect to WAGO Rogowski Coils. Both power measurement modules are compatible with WAGO Current Transformer Blocks.

The 3-Phase Power Measurement Modules join the entry-level 750-493 3PMM and 750-645 2-Channel Vibration and Roller Bearing Monitoring Module (VIB-I/O) in WAGO's Capital Asset Management portfolio. This I/O supports diverse appliances from mining applications to biotech labs, where it helps protect specimens from power outages.
