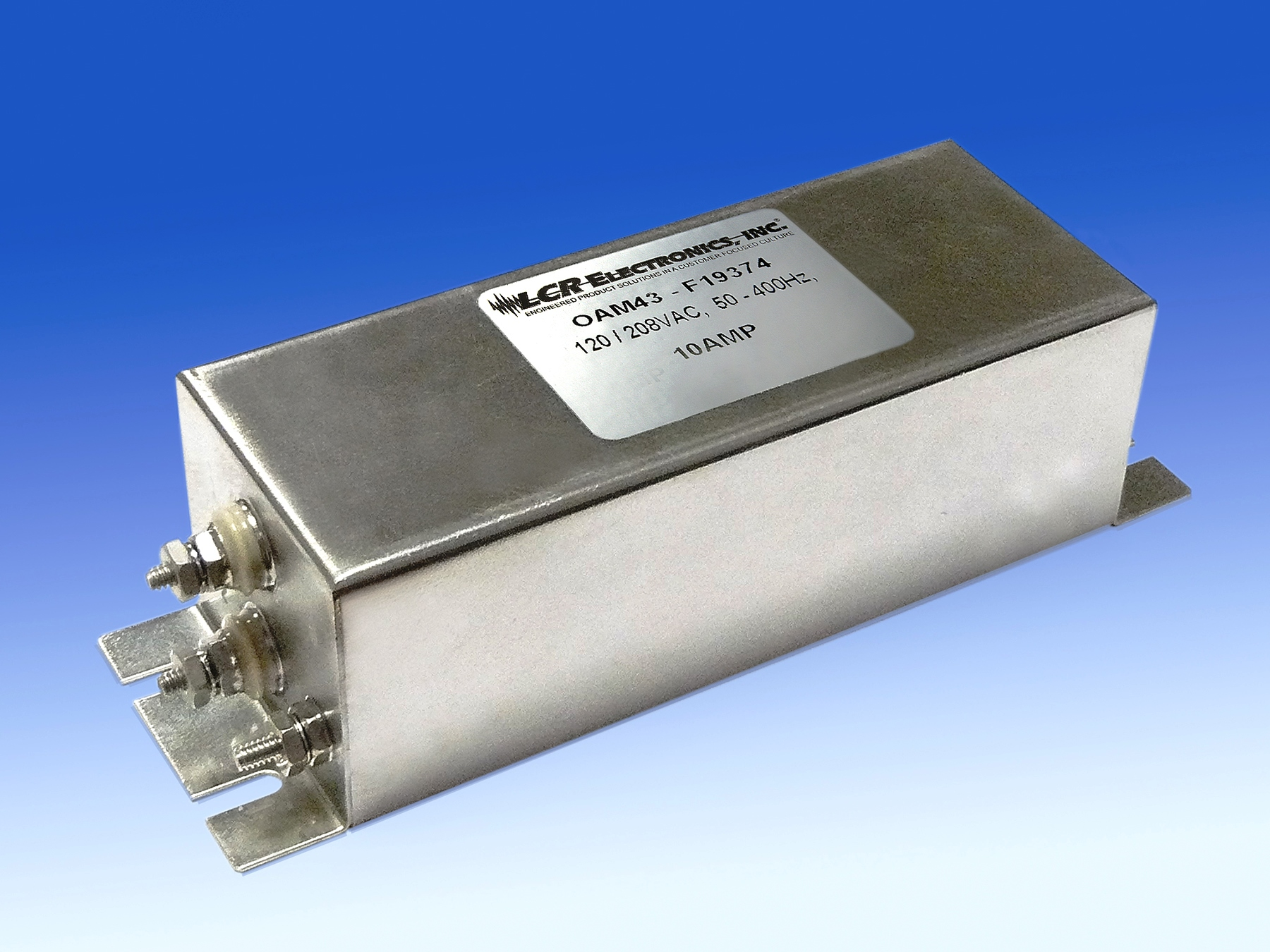

Astrodyne Corp. expanded its custom military filter product line with a high performance single stage EMI filter. The LCR F19734, designed exclusively for use with the Excelsys Technologies' power supplies, helps bring systems in compliance with MIL-STD 461F (a US military standard set to test for electromagnetic compatibility), as well as CE101and CE102 conducted emission standards under various loads.
The filter was created to improve conducted emission capability that assists designers in developing products that meet these standards. The LCR F19374 is ideal for demanding defense, aerospace industrial applications.
The LCR F19374 is part of Astrodyne's family of custom military EMI filters. These include standard off-the-shelf EMI and RFI filters as well as custom filters and suppression components.
LCR offers AC and DC EMI filters and RFI filters for all current and voltage ratings, for 50/60 Hz and 400 Hz applications. LCR also offers aerospace, Tempest and military EMI filters and RFI filters that can be supplied with various levels of transient voltage protection (EMP, HEMP and HERF).
The LCR F19374 has an operating frequency of DC - 400 Hz, a rated voltage range of 85 to 265 VAC, 300 VDC, as well as a current rating of 10 Amps. This high performance single stage filter offers several I/O terminations for design flexibility, including quick disconnect tabs, threaded studs, and MIL connectors.
Technical Specifications
· Operating frequency DC - 400 Hz
· Rated voltage range of 85 to 265 VAC, 300 VDC
· Current rating of 10 Amps
