High Voltage & Current Meter

March 23, 2015

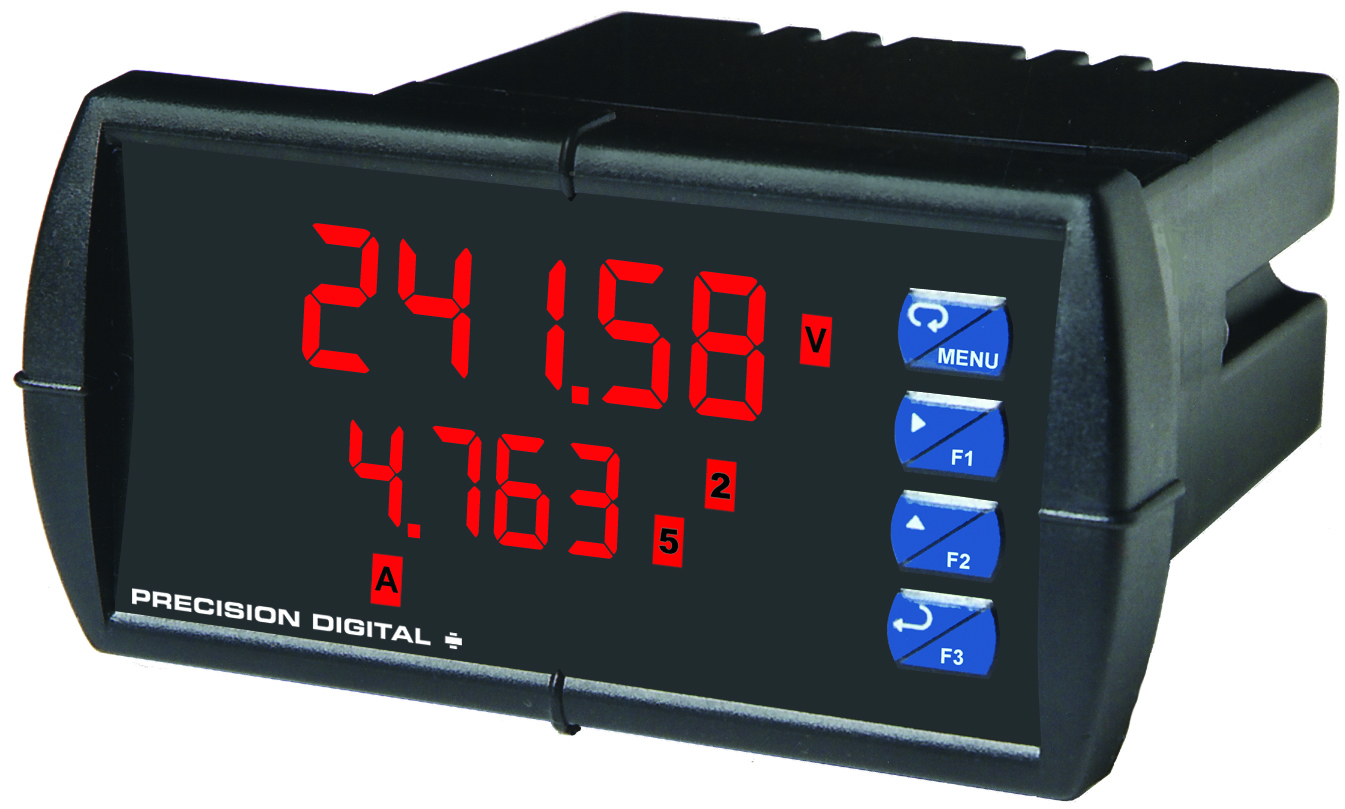

Precision Digital Corporation has announced the latest member of the ProVu® family of digital panel meters, the PD6400 High Voltage and Current Meter.

Precision Digital Corporation has introduced the latest member of the ProVu® family of digital panel meters, the PD6400 High Voltage and Current Meter. An 1/8 DIN size unit, the PD6400 provides reliable measurement of high voltage, current, and apparent power. Independent, field-selectable current and voltage inputs accept up to 300 V and 5 A, AC or DC. The user-configurable, dual-line display features easy-to-read LED digits and warning lights with adjustable brightness. Modbus® capability (Slave) allows seamless integration into existing networks. The PD6400 is NEMA4X/IP65 rated for use in a panel or in the field under harsh environmental conditions; it also carries CE and UL listings.

The PD6400 High Voltage and Current Meter can be easily installed into virtually any application requiring high voltage measurement up to 300 V, high current measurement up to 5 A, or measurement of apparent power. The meter can also accept current transformer inputs for even higher current measurements. AC or DC voltage or current can be measured, and is field-selectable. The displayed voltage, current, or apparent power level can be clearly labeled with a custom tag and unit. The voltage and current can also be scaled to represent different engineering units. Programming the PD6400 is easy with the company's free MeterView® Pro software, which streamlines meter setup and eliminates most button pushing.

Options for the PD6400 meter include up to four (4) relays, a 4-20 mA analog output, and a 24 VDC power supply.  Expansion modules add an additional four (4) relays, two (2) 4-20 mA outputs, and eight (8) digital I/O. Availability & Pricing The ProVu® PD6400 High Voltage and Current Meter is available now. Prices start at $424
