10GBASE-T Integrated Connector Module with Power over Ethernet (PoE) Capability

July 15, 2015

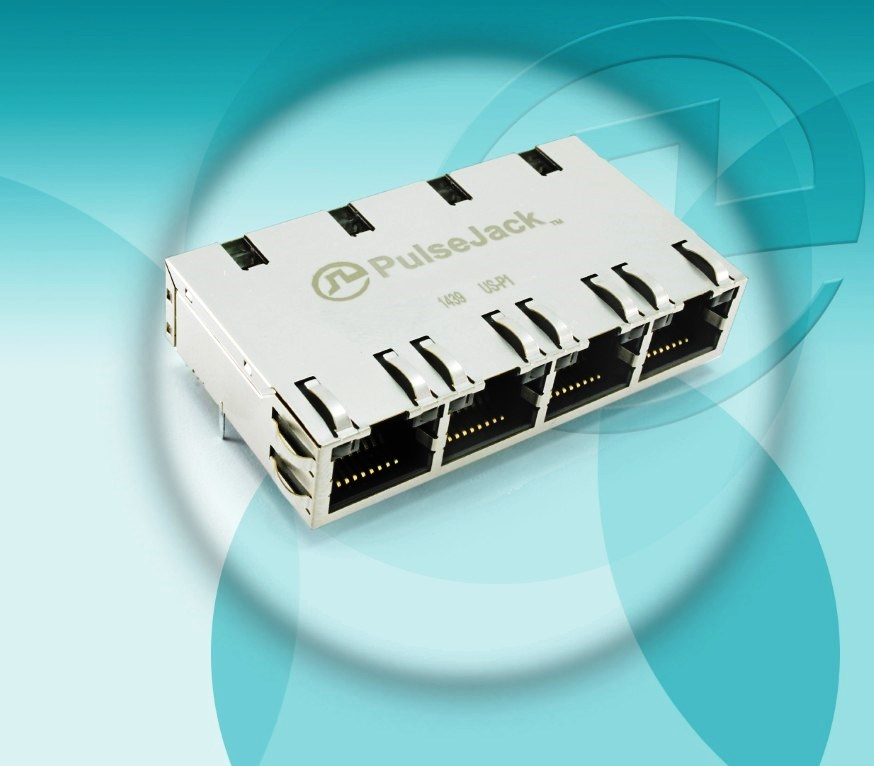

Pulse Electronics Corporation introduces a new 1x4 10GBASE-T Integrated Connector Module (ICM) platform that is designed to meet or exceed IEEE 802.3an 10GBASE-T requirements over 100 meters and can support IEEE 802.3at Power over Ethernet (PoE).

Pulse Electronics Corporation introduces a new 1x4 10GBASE-T Integrated Connector Module (ICM) platform that is designed to meet or exceed IEEE 802.3an 10GBASE-T requirements over 100 meters and can support IEEE 802.3at Power over Ethernet (PoE). The Pulse 10GBASE-T multiport ICMs are ideal for base stations, gateways, routers, and switches that require PoE capability and have a need for higher bandwidth.

Pulse's 10GBASE-T ICMs have additional EMI shielding between ports for improved isolation and are tuned to achieve flat insertion loss and excellent return loss performance over 10GBASE-T frequencies. The JT6 connector series is offered with and without PoE capability, in 4 or 5 channel configurations, and with multiple LED options.

Pulse Electronics JT6 ICMs are RoHS compliant; a Halogen-free option is available. The part ships in trays. The ICMs are currently in high volume production and samples are available.
