Regenerative AC Load Bank Reduces Energy Costs by 90%

Oct. 9, 2015

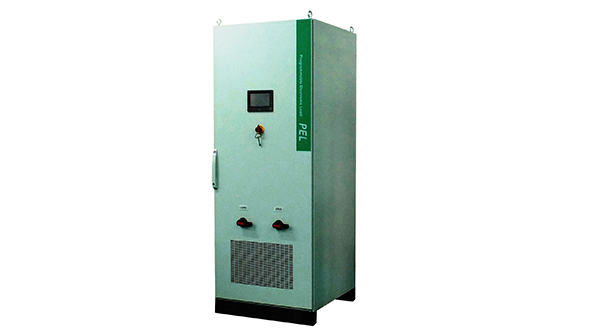

Intepro Systems recently introduced the PEL Regenerative AC Electronic Load Bank.

Intepro Systems recently introduced the PEL Regenerative AC Electronic Load Bank. Built around a 60 kVA chassis, the system can be paralleled for higher power requirements. It also accepts standard AC input ranges from 120 to 480V and provides grid-synchronized, regenerated AC power output that returns 90% of the equipment under test (EUT) load power back to the utility. The PEL Series provides an energy-saving solution when testing any type of power used in a wide range of industries, including automotive, aerospace, medical, battery and green energy.

The PEL Series features three modes of load settings: constant current, constant resistance and constant power. It also provides adjustable power factor from 0.3 to 1.0 to simulate a range of load conditions as well as independent phase control and a built-in measurement system. The PEL Series also offers load sequence transient generation for creating complex, variable and repeatable load conditions.
