15 V, 2.25 MHz Synchronous Dual 600 mA Step-Down Regulator

Oct. 30, 2013
The LTC3607 is a high efficiency, 2.25 MHz synchronous dual output buck regulator that incorporates a peak current mode architecture.

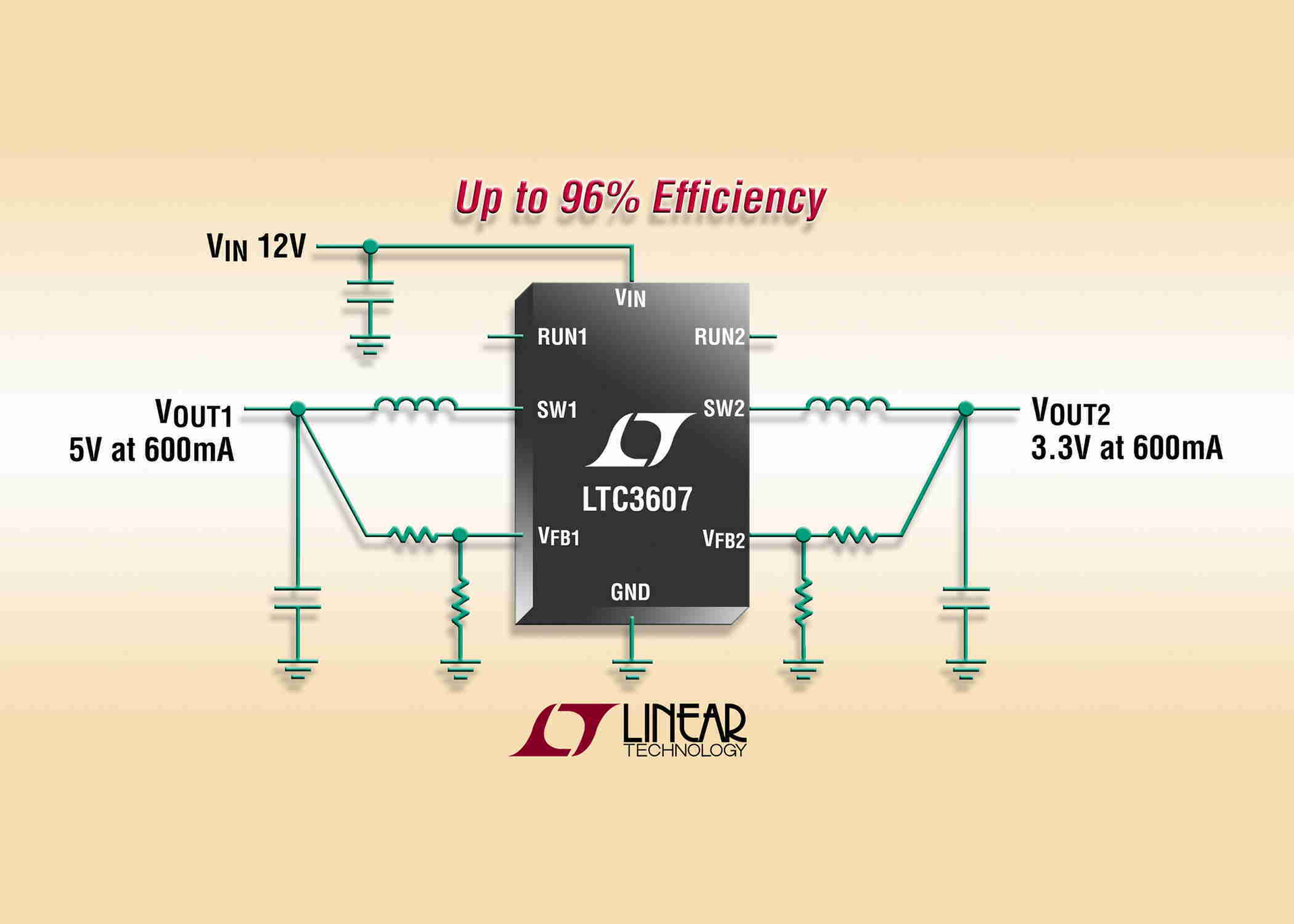

The LTC3607 from Linear Technology is a high-efficiency, 2.25 MHz synchronous dual output buck regulator that incorporates a peak current mode architecture. It can deliver up to 600 mA of continuous output current from each channel at output voltages as low as 0.6 V from a 3 mm x 3 mm QFN or a thermally enhanced MSOP-16 package. The LTC3607 accommodates an input voltage range of 4.5 V to 15 V, making it suitable for dual cell Li-Ion applications as well as 5 V and 12 V intermediate bus systems. Its constant switching frequency of 2.25 MHz is synchronizable and enables the use of tiny, low cost capacitors and inductors.

Each channel of the LTC3607 uses internal switches to deliver efficiencies as high as 96%. Its peak current mode architecture offers excellent line and load transient response. The two channels run 180 degrees out of phase, minimizing the size of input capacitance. Burst Mode® operation maximizes light load efficiency, requiring only 55µA at no load, making it well suited for applications demanding maximum battery run time and excellent light load transient response. For applications that require the lowest possible noise, the LTC3607 can be configured to run in pulse-skipping mode, reducing noise and potential RF interference. Additional features include power good voltage monitors, internal compensation, independent soft-start capability for each channel and short-circuit protection.

The LTC3607EUD is available in a 3 mm x 3 mm QFN-16 and in a leaded version, the LTC3607EMSE in a thermally enhanced MSOP-16 package. Pricing starts at $2.35 and $2.45 each, respectively in 1,000-piece quantities. Industrial grade versions, the LTC3607IUD and LTC3607IMSE, are guaranteed to operate over the -40 °C to 125 °C operating junction temperature range and are priced at $2.59 and $2.70 each, respectively, in 1,000-piece quantities. All versions are available from stock.
