Synchronous Step-Down Regulators With DDR Memory

March 20, 2014
Linear Technology introduces new high reliability H grade and military MP grade versions of the LTC3615 and LTC3615-1, high efficiency, 4MHz synchronous buck regulators that incorporate a constant frequency, current-mode architecture.

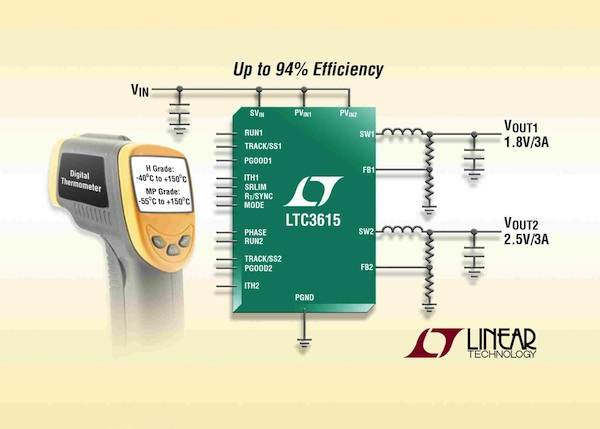

High reliability H grade and military MP grade versions of the LTC3615 and LTC3615-1, high efficiency, 4MHz synchronous buck regulators are available from Linear Technology. The regulators incorporate a constant frequency, current-mode architecture. Low resistance internal switches enable the LTC3615 to deliver up to 3A of continuous output current from each channel while its low dropout operation provides an output voltage ranging from 0.6 V to just millivolts below VIN. The LTC3615 operates from an input voltage of 2.25 V to 5.5 V, making it ideal for single-cell Li-Ion applications as well as 3.3 V and 5 V intermediate bus systems. Its switching frequency is user programmable from 400 kHz to 4 MHz, enabling the use of tiny, low cost capacitors and inductors. The LTC3615 offers selectable 0°/90°/180° phase shift while the LTC3615-1 offers selectable 140°/180° phase shift between channels. The combination of its fast switching capability and the very small 4 mm x 4 mm QFN-24, or thermally enhanced TSSOP-24 package, offer a highly compact solution footprint for applications requiring dual outputs up to 3 A.

The LTC3615 uses internal switches with RDS(ON) of only 55 mΩ and 75 mΩto deliver efficiencies up to 94%. Burst Mode® operation reduces no-load quiescent current to only 130 µA, maximizing both light-load efficiency and run time in battery-powered applications. An adjustable Burst Mode clamp enables designers to optimize light load efficiency. For applications requiring the lowest possible noise, the LTC3615 can be configured to run in either pulse-skipping or forced continuous modes, reducing noise and potential RF interference. Programmable switching slew rates further reduce potential noise concerns. Selectable 0°, 90° or 180° of phase shift between its two channels minimize input current ripple as well as output voltage ripple. The LTC3615 offers inputs for tracking capability as well as a DDR memory mode in which the device can source/sink ±1.5 A. Additional features include optional active voltage positioning (AVP), a Power Good voltage monitor, external synchronization capability and thermal protection.

The LTC3615 and LTC3615-1 are available in a 4mm x 4mm QFN-24, and a 24-lead, thermally enhanced TSSOP package. The high reliability H grade versions are guaranteed to meet specifications over the -40°C to 150°C operating junction temperature range and are priced at $5.00 and $5.35 each, respectively in 1,000-piece quantities. The military MP grade versions are guaranteed to meet specifications over the -55°C to 150°C operating junction temperature range and are priced at $12.55 and $13.00 each, respectively in 1,000-piece quantities. All versions are available from stock.
