Adjustable LDO Increases Design Flexibility

July 7, 2014

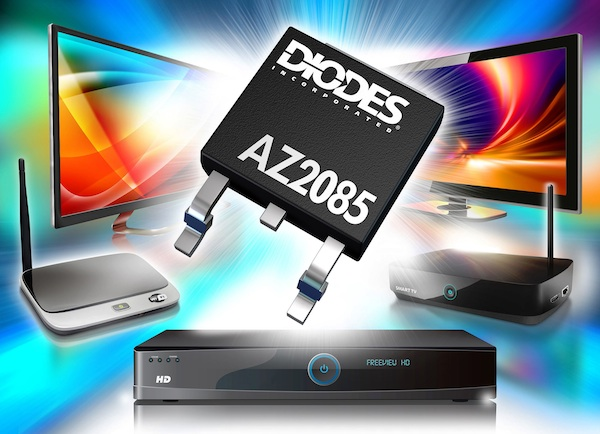

Featuring a minimum load current of just 1mA, a maximum of 3A and an adjust pin current of only 6µA, the AZ2085 adjustable LDO regulator announced by Diodes Incorporated handles a far wider range of applications than alternative DC linear voltage regulators.

Featuring a minimum load current of just 1 mA, a maximum of 3 A and an adjust pin current of only 6 µA, the AZ2085 adjustable LDO regulator announced by Diodes Incorporated handles a far wider range of applications than alternative DC linear voltage regulators.

The device's dropout voltage is typically 1.2 V at the full 3A load current, supporting point of load duties with input voltages from 2.5 V to 15 V.  Applications benefiting from the device's improved minimum load currents and lower dropout voltage include motherboards, telecom equipment and STB power supplies.

Output voltage is set using a pair of external resistors, with the AZ2085's ultra-low adjust pin current enabling designers to employ larger resistors without adversely affecting tolerance.  Design flexibility is further enhanced by the device's compatibility with low ESR ceramic capacitors.

With its maximum specification in load and line regulation of 0.3% and 0.2%, respectively, this TO252 packaged LDO offers designers a high degree of stability under extreme conditions of change in either input voltage or load.  Integral current limiting and thermal protection circuits guard against excessive junction temperatures.

The AZ2085 adjustable LDO regulator from Diodes Incorporated is priced at $0.1USD each in 100k piece quantities.
