Rated for 600 VDC isolation and output currents up to 4A, the new converters show high efficiency of up to 90% and low ripple/noise, with no minimum load.
The wide 4:1 input voltage ranges accept 9–36V or 18–75V to cover multiple supply options such as lead-acid or lithium batteries or 12/24/36/48V industrial bus voltages. The inputs are protected against transients up to 100V, and feature undervoltage lock out (UVLO) to protect batteries from being over-discharged. The single or dual outputs are continuously protected against short circuits and overload and can drive high-capacitive loads.

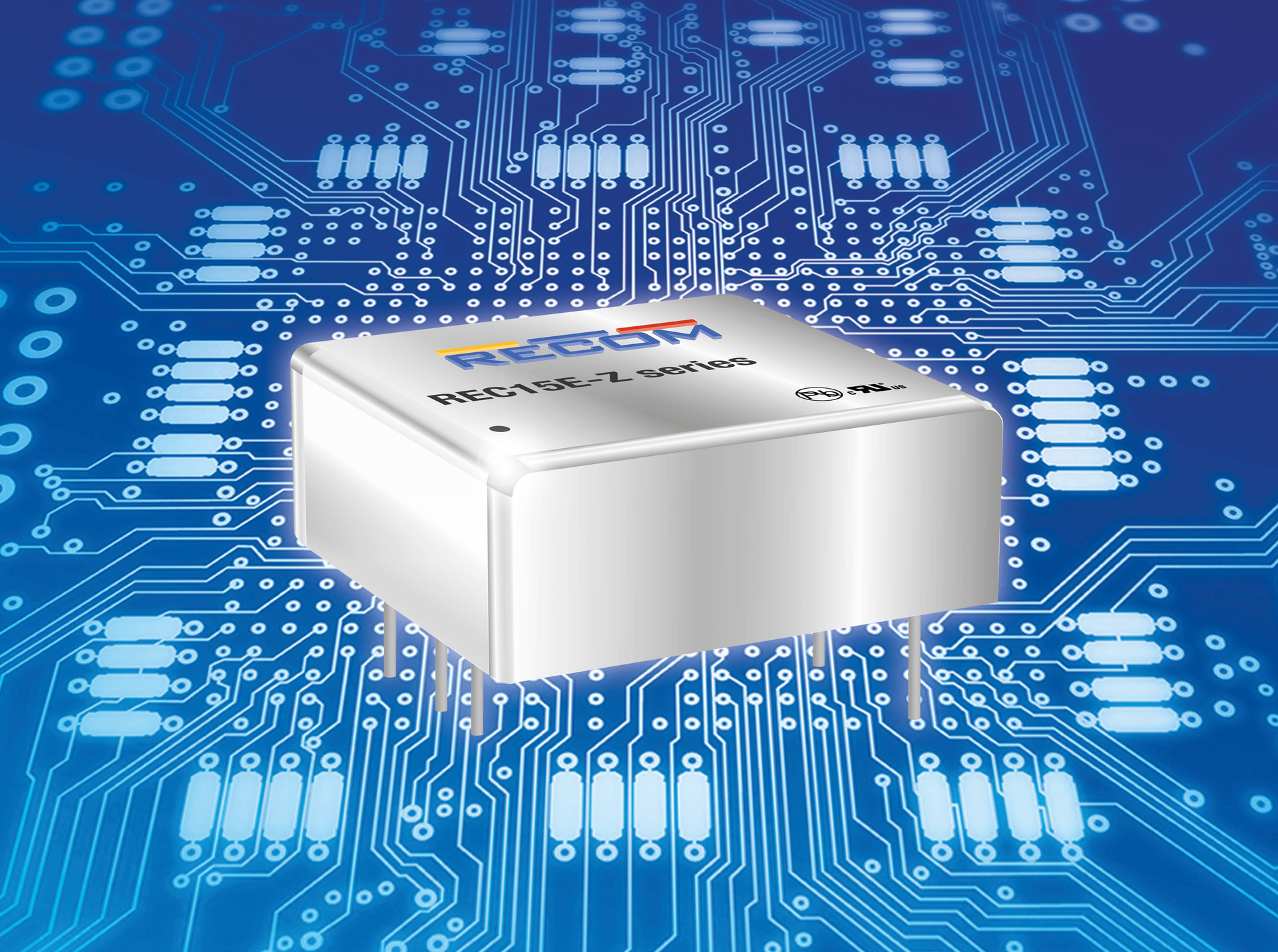

The REC15E-Z Series converters cover a wide temperature range from -40°C to +75°C without derating. The converters are fully certified to industrial EMC and safety standards, and come with a three-year warranty.
