Highly Integrated 65-W Flyback Converter Comes in Thermally Enhanced QFN Package

The latest addition to ST’s VIPerGaN series delivers 65 W in a thermally enhanced QFN package for USB-PD chargers, fast battery chargers, and auxiliary power supplies.
Jan. 20, 2026

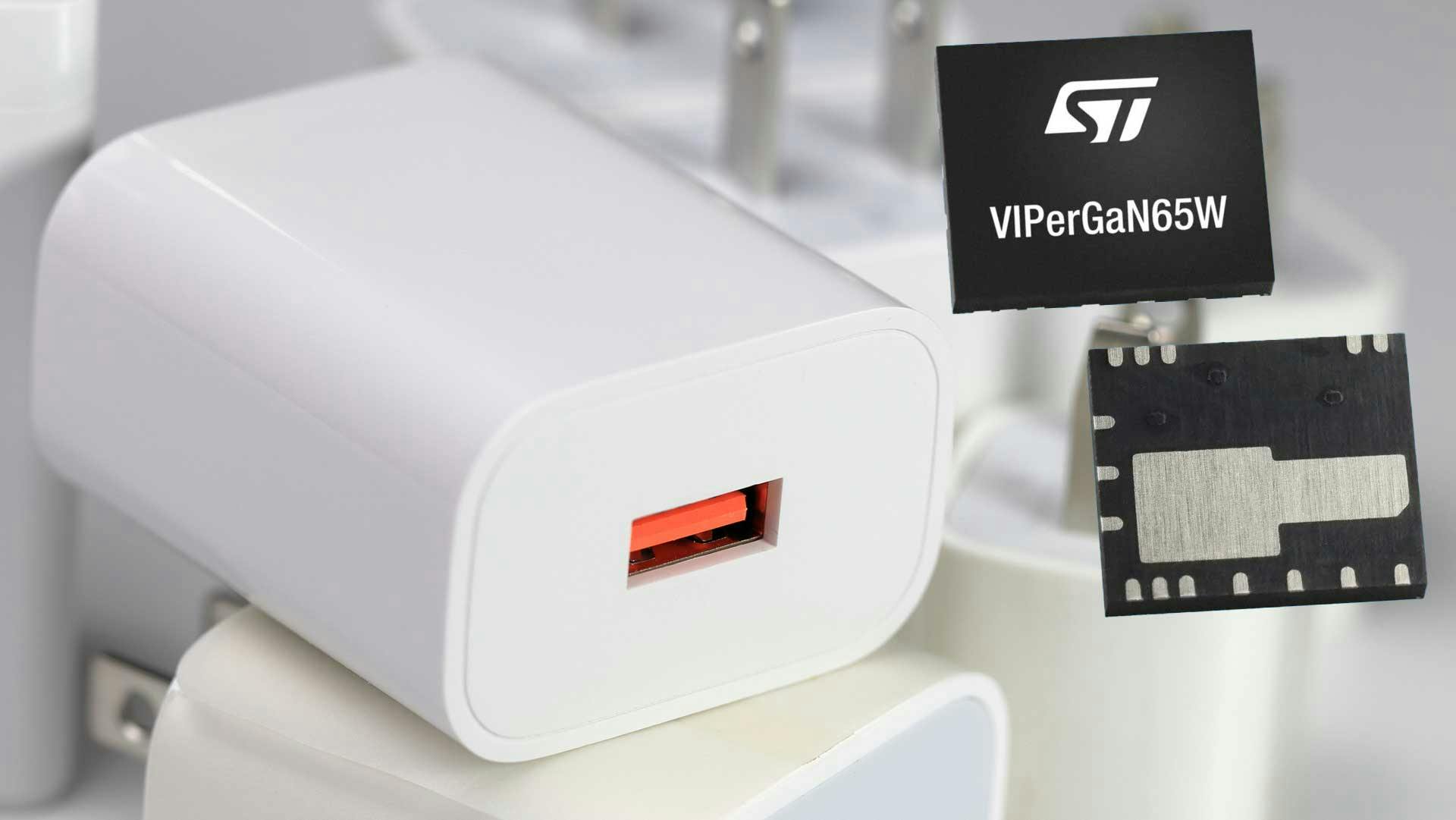

STMicroelectronics recently added VIPerGaN65W, a 65-W flyback converter, to its VIPerGaN series. By combining a 700-V gallium-nitride (GaN) transistor and quasi-resonant pulse-width-modulation (PWM) control IC in a single QFN 5x6 package, the VIPerGaN65W provides a compact, high-quality, cost-effective platform for developing USB-PD chargers, fast battery chargers, and auxiliary power supplies.

VIPerGaN flyback controllers operate in quasi-resonant mode with zero-voltage switching (ZVS) up to the full load. Valley skipping optimizes efficiency at mid-to-high load — ST’s proprietary valley locking prevents noise at audio frequencies and thus ensures silent operation. With frequency foldback at light load, the converter enters burst operation at no-load to cut power consumption below 30 mW for eco-design compliance.

In addition to its integrated GaN FET, the converter features integrated high-voltage startup circuitry, and a senseFET for accurate current monitoring for reduced BOM costs, a compact PCB footprint, and simplified manufacturing logistics.
